Connector End View (C405) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C405 | INLINE | 14A06914A005 | See Below | |||||

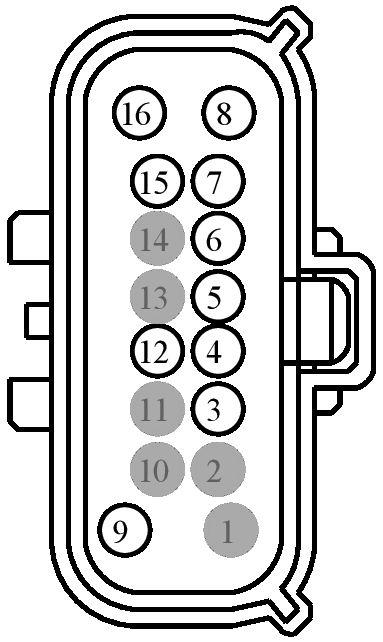

MALE
Harness
14A069

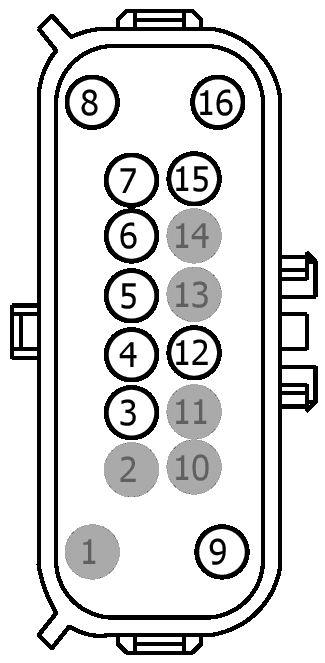

FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * | * | ||
| 2 | * | * | ||
| 3 | VMC11 (YE-VT) | 18 | 14A069 | |
| 3 | VMC11 (YE-VT) | 22 | 14A005 | |
| 4 | RMC32 (GN-BU) | 18 | 14A069 | |
| 4 | RMC32 (GN-BU) | 22 | 14A005 | |
| 5 | RMC33 (WH-VT) | 18 | 14A069 | |
| 5 | RMC33 (WH-VT) | 22 | 14A005 | |
| 6 | VMC23 (GN-OG) | 18 | 14A069 | |
| 6 | VMC23 (GN-OG) | 22 | 14A005 | |
| 7 | VE727 (BU-BN) | 18 | 14A069 | |
| 7 | VE727 (BU-BN) | 20 | 14A005 | |
| 8 | CE515 (YE-GY) | 12 | ||
| 9 | LE230 (BN-BU) | 18 | 14A069 | |
| 9 | LE230 (BN-BU) | 20 | 14A005 | |
| 10 | * | * | ||
| 11 | * | * | ||
| 12 | RE230 (WH-VT) | 18 | 14A069 | |
| 12 | RE230 (WH-VT) | 22 | 14A005 | |
| 13 | * | * | ||
| 14 | * | * | ||
| 15 | DE515 (BK) | 18 | 14A069 | |
| 15 | DE515 (BK) | 20 | 14A005 |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1393
Service Part Number:
7U2Z-14S411-KB
Gauge:
14 18
Pin material:
Tin & Silver
Cavities:
16
Vehicle Uses:
- Connector - Inline
- For Mating Connector Refer To WPT-1142
Pigtail Kit Part Number WPT-1541
Service Part Number:
JU2Z-14S411-KA
Gauge:
14 16
Pin material:
Tin & Silver
Cavities:
16
Vehicle Uses:
- Connector - Inline
- In-Line - Auxiliary Engine Connector
- Module - Glow Plug
