Connector End View (C402A) - HEATED REAR WINDOW ELEMENT
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C402A | HEATED REAR WINDOW ELEMENT | 14A583 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CRD06 (BN-YE) | 10 | RELAY - HEATER REAR WINDOW | E5SB-14474-BA | ||||
Available Pigtail Kits

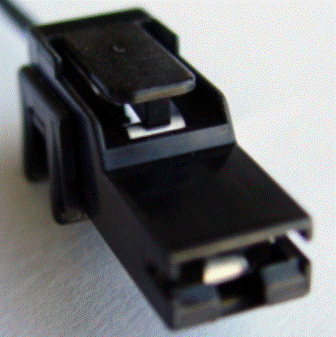

Pigtail Kit Part Number WPT-371
Service Part Number:
3U2Z-14S411-KBA
Gauge:
10
Pin material:
Tin
Cavities:
1
Vehicle Uses:
- Cigar Lighter
- Horn
- Lamp - CHMSL (Center High Mount Stop Lamp)
- Module - Isolater Antenna
- Module - Radio Power Antenna
- Relay - Starter Motor
- Switch - Park Brake
- Terminal - Rear Window Defroster Grid

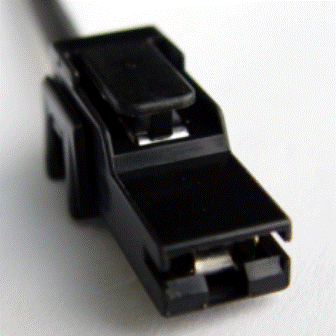

Pigtail Kit Part Number WPT-434
Service Part Number:
3U2Z-14S411-MFA
Gauge:
16 18
Pin material:
Tin
Cavities:
1
Vehicle Uses:
- Lamp - Map
