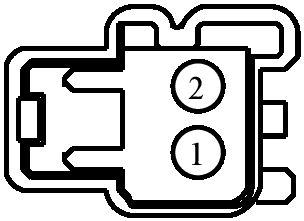

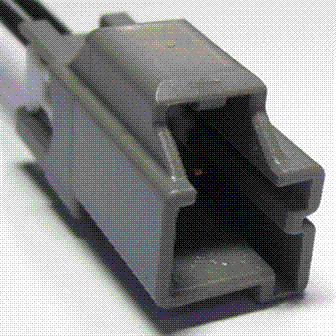

Connector End View (C365) - FRONT SEAT BACKREST HEATER MAT LH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C365 | FRONT SEAT BACKREST HEATER MAT LH | LT GY | 14D232 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ABB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CHS12 (YE-GN) | 16 | HEATER - PASSENGER CUSHION / BACK | 97BG-14421-ABB | ||||
| 2 | RHS02 (BU-OG) | 16 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER - | 97BG-14421-ABB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1078
Service Part Number:
3U2Z-14S411-LAB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Connector - Inline
- Element - Heated Seat
- Lamp - PRNDL Indicator
- Speaker - Front
- Switch - Seat Lumbar
