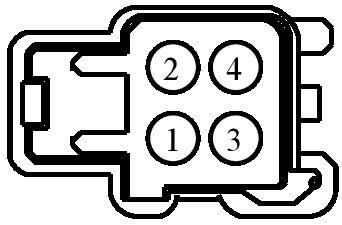

Connector End View (C364) - FRONT SEAT CUSHION HEATER MAT LH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C364 | FRONT SEAT CUSHION HEATER MAT LH | LT GY | 14D231 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CHS02 (YE-BU) | 16 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER + | NA | ||||
| 2 | VHS26 (VT) | 20 | SENSOR - CUSHION TEMP. DRIVER OR LEFT | NA | ||||
| 3 | RHS05 (YE-VT) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. | NA | ||||
| 4 | CHS12 (YE-GN) | 16 | HEATER - PASSENGER CUSHION / BACK | NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1076
Service Part Number:
3U2Z-14S411-BUB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- Connector - Inline
- Element - Heated Seat
- Lamp - Ash Tray
- Lamp - Courtesy - Footwell
- Module - Remote Keyless Entry
- Motor - Heater/AC Blower (Auxiliary)
- Radio - Amplifier
- Switch - Convertable Top
