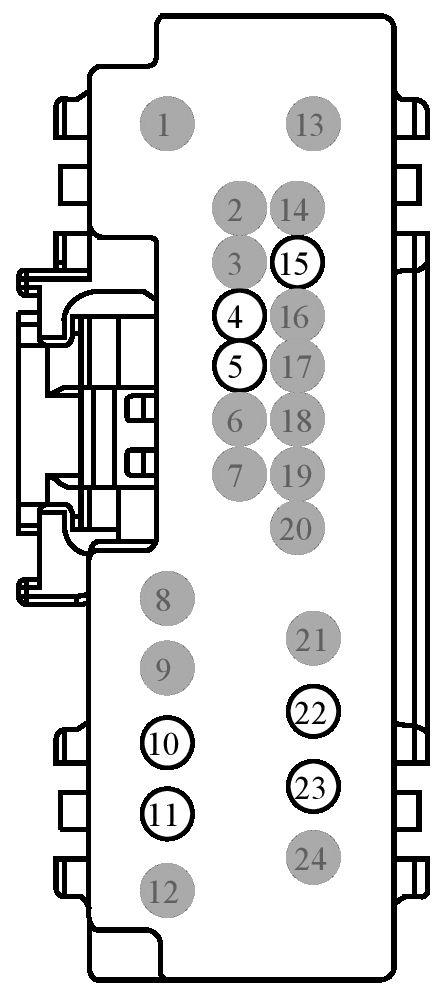

Connector End View (C341C) - DRIVER FRONT SEAT MODULE (DSM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341C	DRIVER FRONT SEAT MODULE (DSM)	14D231			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	RPP07 (YE-GN)	20	CTRL MOD. - SENSOR ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD) -	NA
5	CPP18 (BN-VT)	20	CTRL MOD. - SOLENOID RAKE (TILT)	NA
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	CPP04 (GY-OG)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP	NA
11	CPP22 (GY-BN)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD	NA
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	RPP06 (GN)	20	CTRL MOD. - SENSOR ADJUSTABLE PEDAL -	NA
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	CPP23 (VT-GN)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN	NA
23	CPP03 (GN-VT)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD	NA
24	*	*	Not Used	N/A

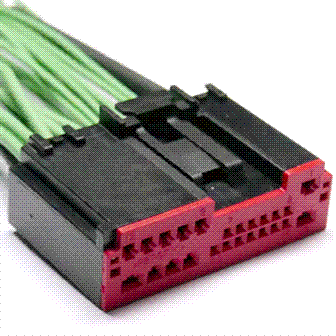

Available Pigtail Kits

Pigtail Kit Part Number WPT-1550

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-AJA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Lamp - Front Cornering/ Turn
Module - Driver Door
Module - Headlamp Control
Module - Heated Seat
Module - Seat Memory
Module - Upfitter Interface
