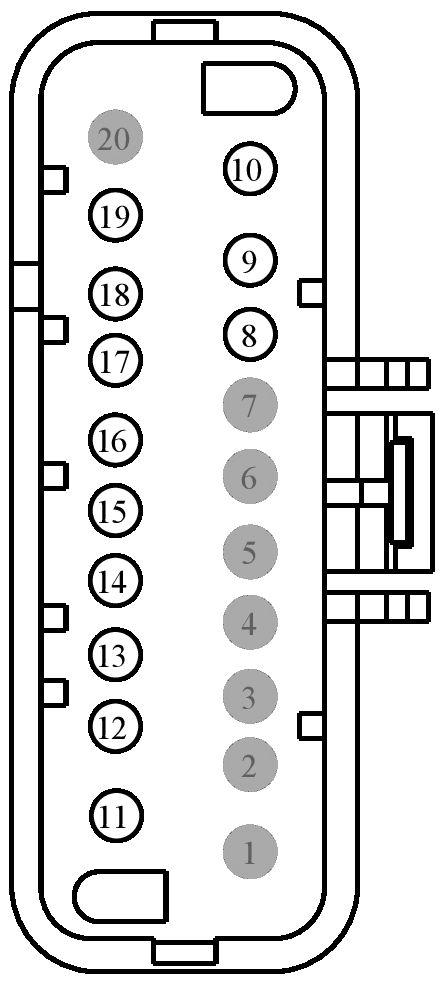

Connector End View (C340) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C340 | INLINE | BK | 14D23314D230 | Not Available | ||||
MALE
Harness
14D233
FEMALE
Harness
14D230
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * | * | ||
| 2 | * | * | ||
| 3 | * | * | ||
| 4 | * | * | ||
| 5 | * | * | ||
| 6 | * | * | 14D230 | |
| 6 | VPS12 (VT-OG) | 20 | 14D233 | |
| 7 | * | * | 14D230 | |
| 7 | RPS12 (GN-OG) | 20 | 14D233 | |
| 8 | CPS18 (BN-GN) | 18 | ||
| 9 | CPS19 (GY-VT) | 18 | ||
| 10 | CPS08 (VT-OG) | 14 | 14D233 | |
| 10 | CPS30 (VT-BN) | 14 | 14D230 | |
| 11 | CPS07 (GY-BN) | 14 | 14D233 | |
| 11 | CPS29 (WH-BN) | 14 | 14D230 | |
| 12 | VHS21 (BU-WH) | 20 | ||
| 13 | RHS08 (VT-WH) | 18 | 14D233 | |
| 13 | RHS08 (VT-WH) | 20 | 14D230 | |
| 14 | GD904 (BK-BU) | 16 | 14D230 | |
| 14 | RHS02 (BU-OG) | 16 | 14D233 | |
| 14 | RHS06 (WH) | 14 | ||
| 15 | CHS06 (BU-BN) | 14 | ||
| 16 | VHS36 (YE-BU) | 20 | ||
| 17 | RHS20 (GN-BU) | 20 | ||
| 18 | CHS12 (YE-GN) | 16 | ||
| 19 | CHS08 (BN-YE) | 18 |
