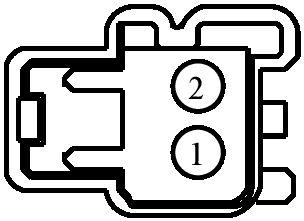

Connector End View (C335) - FRONT SEAT BACKREST HEATER MAT RH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C335	FRONT SEAT BACKREST HEATER MAT RH	LT GY	14D233	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CHS12 (YE-GN)	16	HEATER - PASSENGER CUSHION / BACK	NA
2	RHS02 (BU-OG)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER -	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1078

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-LAB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Connector - Inline
Element - Heated Seat
Lamp - PRNDL Indicator
Speaker - Front
Switch - Seat Lumbar
