Connector End View (C328) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C328 | INLINE | 14B07914401 | See Below | |||||

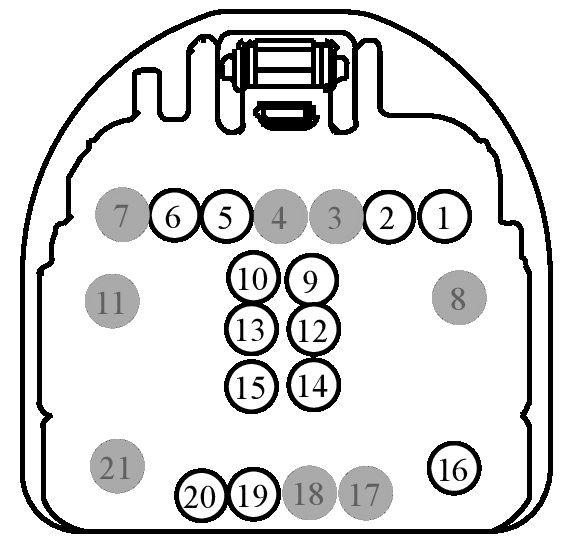

MALE
Harness
14B079

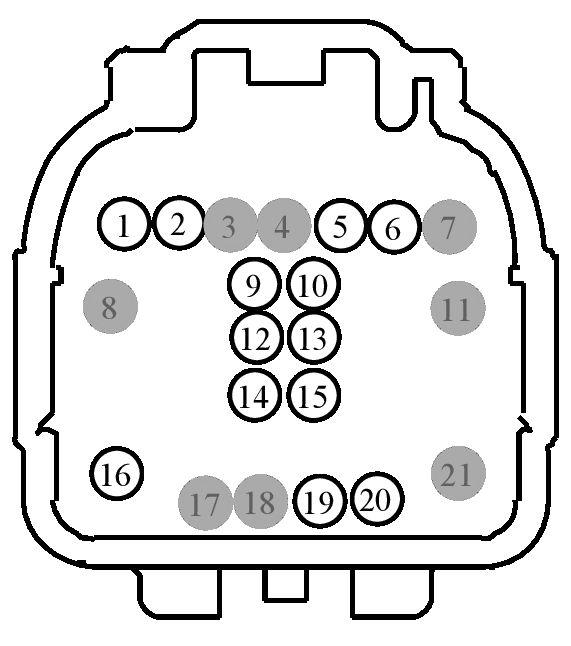

FEMALE
Harness
14401
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | VLN04 (VT-GY) | 22 | 14B079 | |
| 1 | VLN04 (VT-GY) | 26 | 14401 | |
| 2 | CCB20 (BU-WH) | 20 | 14401 | |
| 2 | CCB20 (BU-WH) | 22 | 14B079 | |
| 3 | * | * | ||
| 4 | * | * | ||
| 5 | CE469 (BN) | 26 | ||
| 6 | CH253 (WH-BN) | 26 | ||
| 7 | * | * | ||
| 8 | * | * | ||
| 9 | CHS48 (YE) | 26 | ||
| 10 | CHS49 (VT) | 26 | ||
| 11 | * | * | ||
| 12 | LYA03 (YE-VT) | 26 | ||
| 13 | RYA03 (BU-BN) | 26 | ||
| 14 | CHS31 (YE-OG) | 26 | ||
| 15 | CHS80 (BU-OG) | 26 | ||
| 16 | SBB16 (VT-RD) | 16 | ||
| 17 | * | * | ||
| 18 | * | * | ||
| 19 | CCB21 (GN-VT) | 20 | 14401 | |
| 19 | CCB21 (GN-VT) | 22 | 14B079 | |
| 20 | CCB22 (WH-BN) | 20 | 14401 | |
| 20 | CCB22 (WH-BN) | 22 | 14B079 |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1561
Service Part Number:
JU2Z-14S411-ARA
Gauge:
14 16 20
Pin material:
Tin
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1425
Service Part Number:
FU2Z-14S411-RA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1559
Service Part Number:
FU2Z-14S411-RB
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
