Connector End View (C327) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C327 | INLINE | 14B07914401 | See Below | |||||

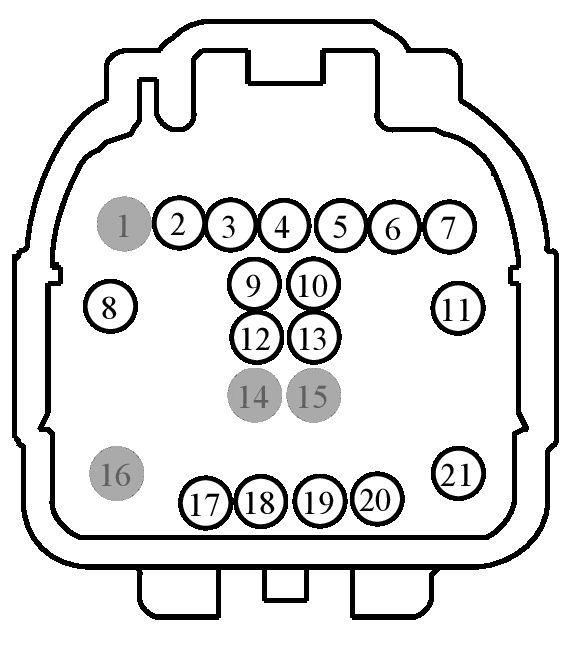

MALE
Harness
14B079

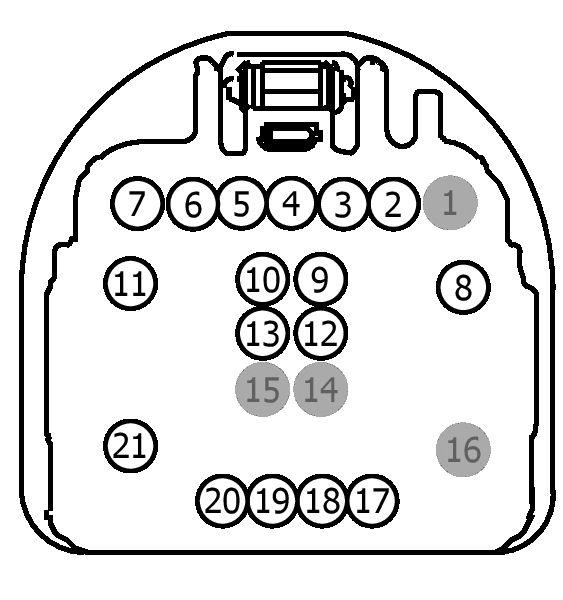

FEMALE
Harness
14401
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * | * | ||
| 2 | CMP32 (GN) | 22 | 14401 | |
| 2 | CMP32 (GN) | 26 | 14B079 | |
| 3 | CMP18 (GN-BN) | 26 | ||
| 4 | CMP02 (GN-BU) | 26 | ||
| 5 | CCB23 (VT-GN) | 20 | 14401 | |
| 5 | CCB23 (VT-GN) | 22 | 14B079 | |
| 6 | CCB24 (WH-OG) | 20 | 14401 | |
| 6 | CCB24 (WH-OG) | 22 | 14B079 | |
| 7 | CCB25 (BN) | 20 | 14401 | |
| 7 | CCB25 (BN) | 22 | 14B079 | |
| 8 | SBB05 (GY-RD) | 16 | ||
| 9 | HYA01 (OG-GN) | 20 | ||
| 10 | HYA02 (OG-WH) | 20 | ||
| 11 | GD216 (BK-VT) | 20 | 14401 | |
| 11 | GD216 (BK-VT) | 22 | 14B079 | |
| 12 | CHS52 (BU) | 26 | ||
| 13 | CHS53 (WH-BN) | 26 | ||
| 14 | * | * | ||
| 15 | * | * | ||
| 16 | * | * | ||
| 17 | VDN15 (BU-GY) | 22 | 14401 | |
| 17 | VDN15 (BU-GY) | 26 | 14B079 | |
| 18 | RPK05 (YE-OG) | 20 | 14B079 | |
| 18 | RPK05 (YE-OG) | 22 | 14401 | |
| 19 | VPK05 (BN-GN) | 20 | 14B079 | |
| 19 | VPK05 (BN-GN) | 22 | 14401 | |
| 20 | CBX07 (GN-RD) | 22 | 14401 | |
| 20 | CBX07 (GN-RD) | 26 | 14B079 |

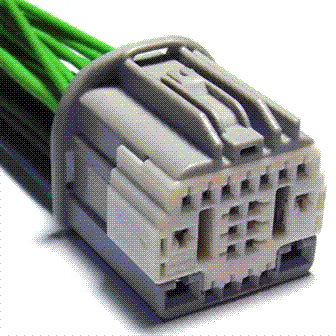

Available Pigtail Kits
Pigtail Kit Part Number WPT-1463
Service Part Number:
GU2Z-14S411-GA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1482
Service Part Number:
GU2Z-14S411-GB
Gauge:
14 16
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
