Connector End View (C314) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C314 | INLINE | BK | 14A69914A005 | Not Available | ||||

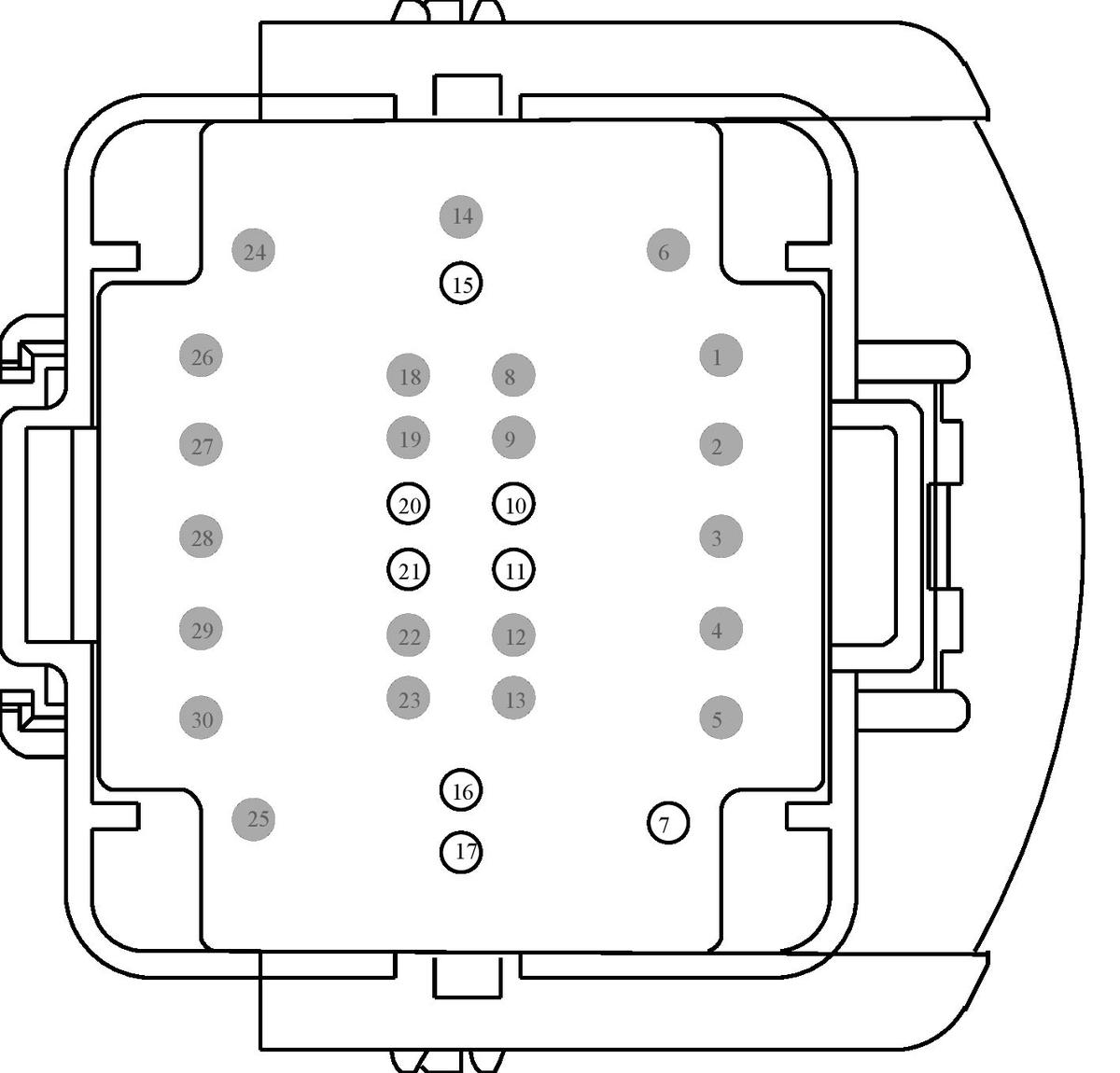

MALE
Harness
14A699

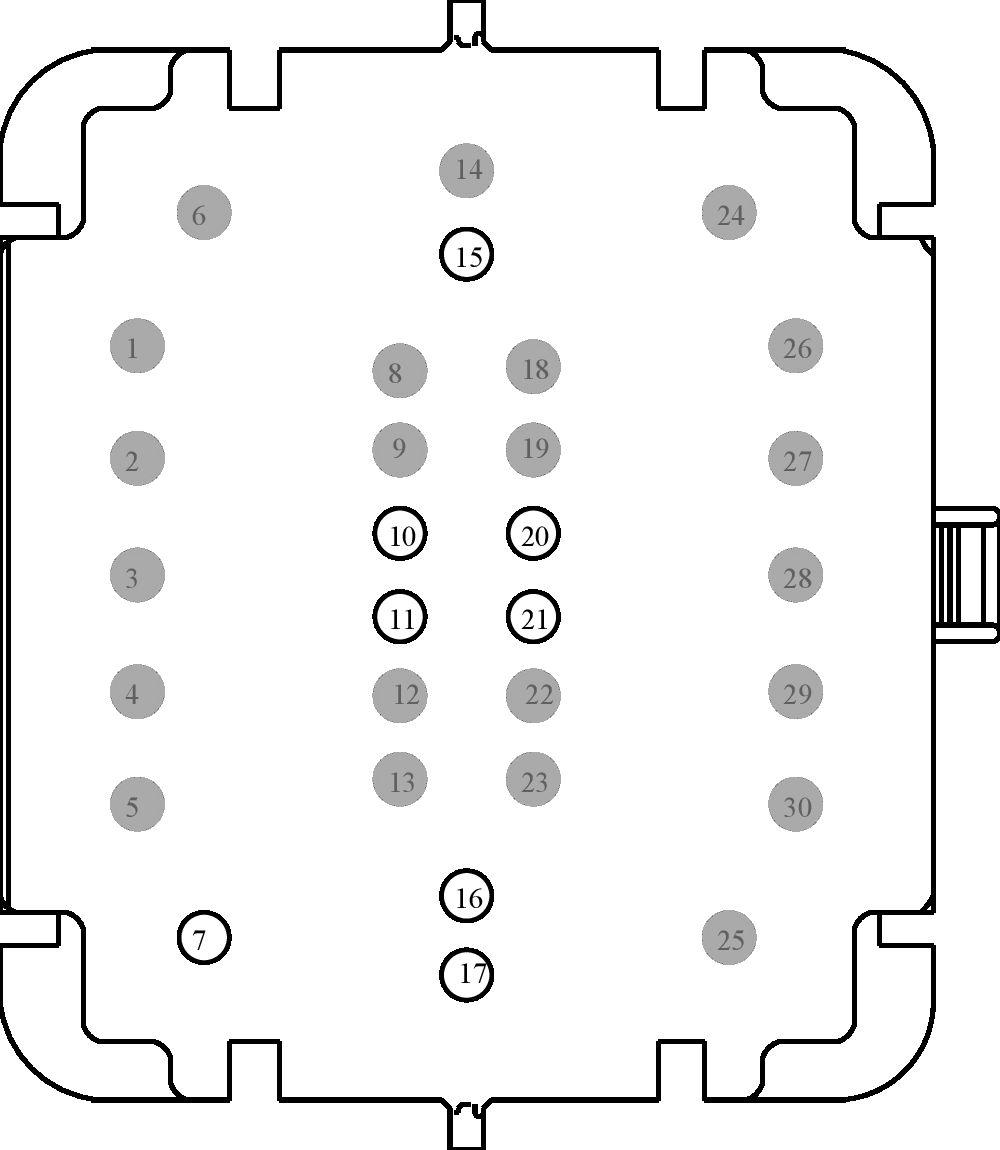

FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * | * | ||
| 2 | * | * | ||
| 3 | * | * | ||
| 4 | * | * | ||
| 5 | * | * | ||
| 6 | * | * | ||
| 7 | GD382 (BK-GY) | 18 | 14A005 | |
| 7 | GD382 (BK-GY) | 20 | 14A699 | |
| 8 | * | * | ||
| 9 | * | * | ||
| 10 | CR204 (VT) | 20 | 14A699 | |
| 10 | CR204 (VT) | 22 | 14A005 | |
| 11 | CHS74 (WH-OG) | 22 | ||
| 12 | * | * | ||
| 13 | * | * | ||
| 14 | * | * | ||
| 15 | CPSD2 (VT-GN) | 18 | 14A699 | |
| 15 | CPSD2 (VT-GN) | 20 | 14A005 | |
| 16 | GD382 (BK-GY) | 18 | ||
| 17 | GD382 (BK-GY) | 20 | ||
| 18 | * | * | ||
| 19 | * | * | ||
| 20 | RR180 (BN-GN) | 20 | 14A699 | |
| 20 | RR180 (BN-GN) | 22 | 14A005 | |
| 21 | CR180 (YE) | 20 | 14A699 | |
| 21 | CR180 (YE) | 22 | 14A005 | |
| 22 | * | * | ||
| 23 | * | * | ||
| 24 | * | * | ||
| 25 | * | * | ||
| 26 | * | * | ||
| 27 | * | * | ||
| 28 | * | * | ||
| 29 | * | * |
