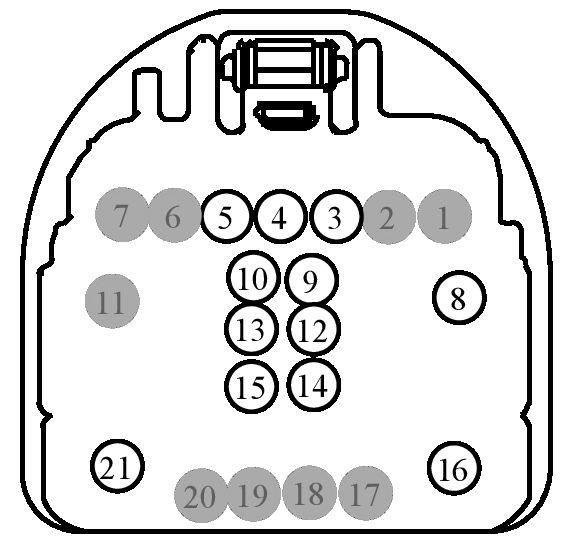

Connector End View (C313) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C313 | INLINE | 14A69914A005 | See Below | |||||
MALE
Harness
14A699
FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * | * | ||
| 2 | * | * | ||
| 3 | CBP36 (BU-BN) | 20 | ||
| 4 | CHS74 (WH-OG) | 22 | ||
| 5 | CHS75 (VT-OG) | 22 | ||
| 6 | * | * | ||
| 7 | * | * | ||
| 8 | SBB73 (RD) | 14 | ||
| 9 | CHS80 (BU) | 26 | 14A005 | |
| 9 | CHS80 (BU-OG) | 26 | 14A699 | |
| 10 | CHS31 (YE) | 26 | ||
| 11 | * | * | ||
| 12 | CHS49 (VT) | 26 | ||
| 13 | CHS48 (YE) | 26 | ||
| 14 | CHS53 (WH) | 26 | ||
| 15 | CHS52 (BU) | 26 | ||
| 16 | SBB73 (RD) | 14 | ||
| 17 | * | * | ||
| 18 | * | * | ||
| 19 | * | * | ||
| 20 | * | * |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1561
Service Part Number:
JU2Z-14S411-ARA
Gauge:
14 16 20
Pin material:
Tin
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1425
Service Part Number:
FU2Z-14S411-RA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1559
Service Part Number:
FU2Z-14S411-RB
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
