Connector End View (C310B) - RESTRAINTS CONTROL MODULE (RCM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C310B RESTRAINTS CONTROL MODULE (RCM) BK 14A005 part# N/A Not Available

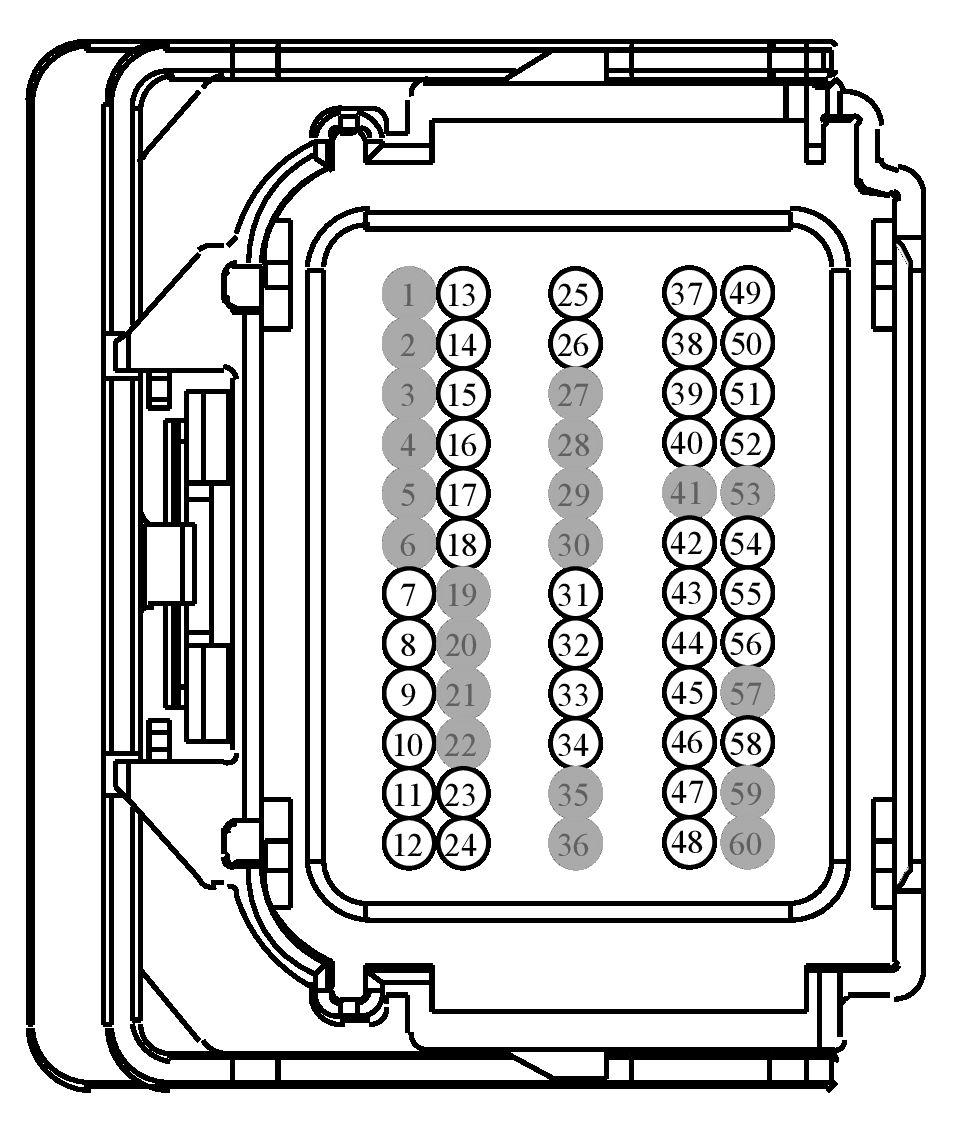

GFDWR761Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 * * Not Used N/A
7 RR147 (YE-VT) 22 CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD - DU5T-14474-EAA
8 CR147 (GN-OG) 22 CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD + DU5T-14474-EAA
9 CR122 (WH-OG) 22 CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD + DU5T-14474-EAA
10 RR122 (BN) 22 CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD - DU5T-14474-EAA
11 RR120 (BN-GN) 22 CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE - DU5T-14474-EAA
12 CR120 (BU-OG) 22 CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE + DU5T-14474-EAA
13 CR181 (WH) 22 CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD + DU5T-14474-EAA
14 RR181 (BU-OG) 22 CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD - DU5T-14474-EAA
15 RR180 (BN-GN) 22 CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER - DU5T-14474-EAA
16 CR180 (YE) 22 CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER + DU5T-14474-EAA
17 CR111 (BN-WH) 20 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + 8U5T-14474-BA
18 RR111 (YE-VT) 20 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - 8U5T-14474-BA
19 * * Not Used N/A
20 * * Not Used N/A
21 * * Not Used N/A
22 * * Not Used N/A
23 VR215 (YE-VT) 22 SENSOR - SEAT TRACK POSITION DRIVER DU5T-14474-EAA
24 VR216 (GN-OG) 22 SENSOR - SEAT TRACK POSITION FRONT PASSENGER DU5T-14474-EAA
25 CR109 (BN-BU) 20 CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + 8U5T-14474-BA
26 RR109 (BU-GN) 20 CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - 8U5T-14474-BA
27 * * Not Used N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 RR175 (YE-OG) 22 CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT PASSENGER SIDE - DU5T-14474-EAA
32 VR237 (BN-WH) 22 SENSOR - SIDE IMPACT PRESSURE FRONT PASSENGER SIDE DU5T-14474-EAA
33 VR236 (BU-OG) 22 SENSOR - SIDE IMPACT PRESSURE FRONT DRIVER SIDE DU5T-14474-EAA
34 RR174 (WH-OG) 22 CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT DRIVER SIDE - DU5T-14474-EAA
35 * * Not Used N/A
36 * * Not Used N/A
37 CR106 (VT-GY) 18 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD + 8U5T-14474-CA
38 RR106 (YE-OG) 18 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD - 8U5T-14474-CA
39 RR105 (GY-YE) 18 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - DU5T-14474-EAA
40 CR105 (GN-BU) 18 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + 8U5T-14474-CA
41 * * Not Used N/A
42 CR167 (YE-VT) 22 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) DU5T-14474-EAA
43 RR134 (BN-BU) 22 CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE - DU5T-14474-EAA
44 VR220 (VT-OG) 22 SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE DU5T-14474-EAA
45 VR219 (GN-WH) 22 SENSOR - SIDE IMPACT ROW 2 DRIVER SIDE DU5T-14474-EAA
46 RR133 (GY-BN) 22 CTRL MOD. - SENSOR SIDE IMPACT ROW 2 DRIVER SIDE - DU5T-14474-EAA
47 VDB26 (GY-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW DU5T-14474-EAA
48 VDB25 (GN-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH DU5T-14474-EAA
49 CR171 (VT-GN) 22 CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) + DU5T-14474-EAA
50 RR171 (GY) 22 CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) - DU5T-14474-EAA
51 RR170 (BN-BU) 22 CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) - DU5T-14474-EAA
52 CR170 (GN) 22 CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) + DU5T-14474-EAA
53 * * Not Used N/A
54 CR201 (GN-BU) 22 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE DU5T-14474-EAA
55 CR203 (GY-VT) 22 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD DU5T-14474-EAA
56 CR204 (VT) 22 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 DRIVER SIDE DU5T-14474-EAA
57 * * Not Used N/A
58 CR206 (BN) 22 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD DU5T-14474-EAA
59 * * Not Used N/A
60 * * Not Used N/A
