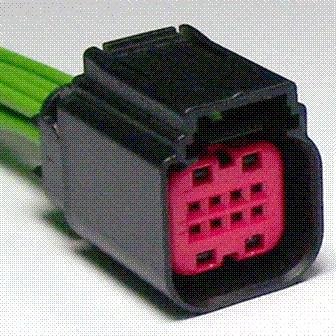

Connector End View (C306) - PARKING BRAKE SWITCH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C306	PARKING BRAKE SWITCH	BK	14B079	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64

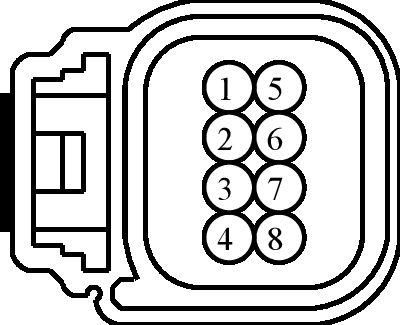

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-LA
2	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	9U5T-14474-LA
3	CCB20 (BU-WH)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 1	9U5T-14474-LA
4	CCB23 (VT-GN)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 4	9U5T-14474-LA
5	CCB25 (BN)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 6	9U5T-14474-LA
6	CCB24 (WH-OG)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 5	9U5T-14474-LA
7	CCB22 (WH-BN)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 3	9U5T-14474-LA
8	CCB21 (GN-VT)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 2	9U5T-14474-LA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1198

Courtesy of FORD MOTOR COMPANY

Service Part Number:

4U2Z-14S411-LC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Remote Keyless Entry
Switch - Keyless Entry
