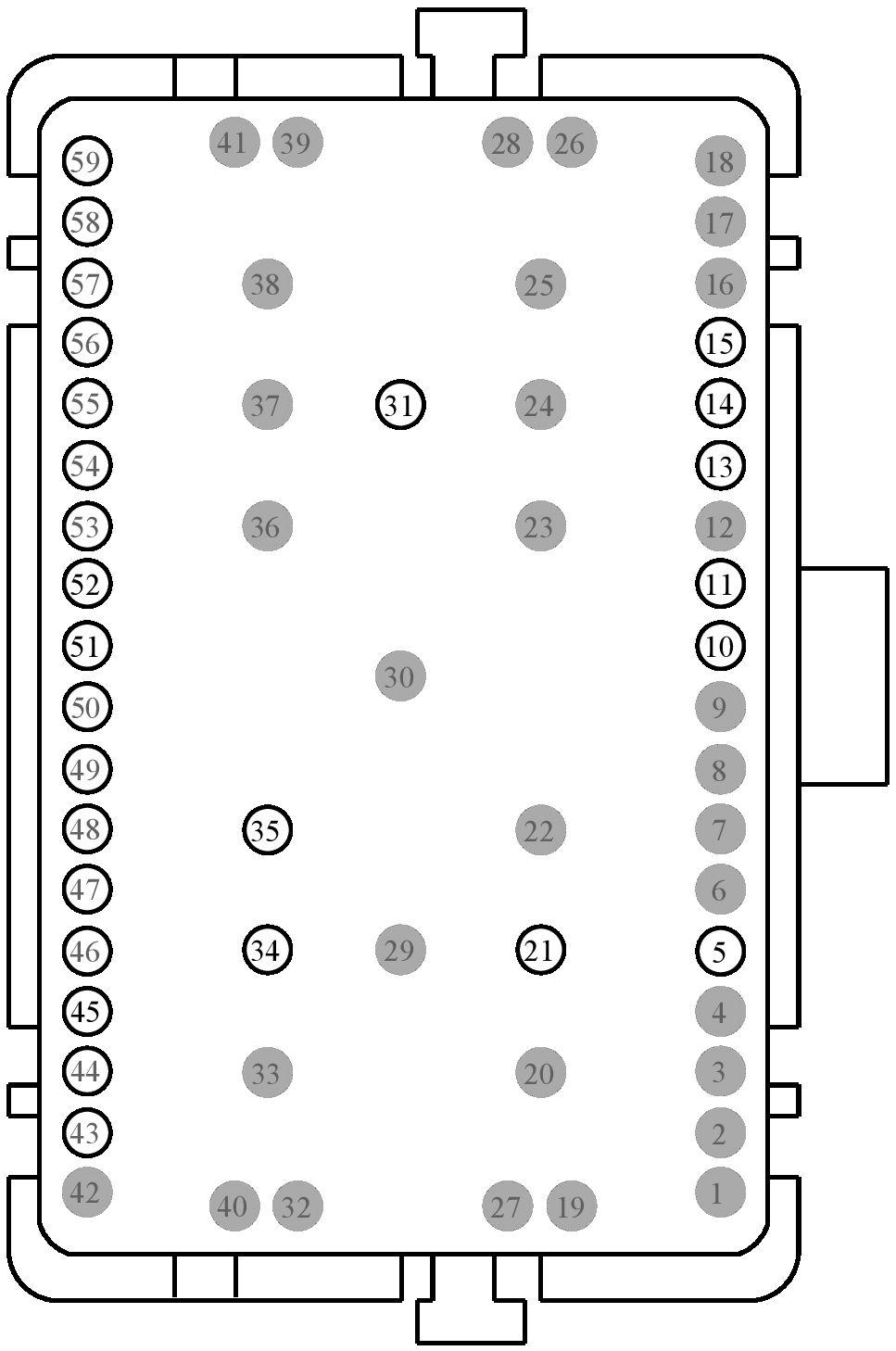

Connector End View (C300) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C300 | INLINE | BK | 14D23114A005 | Not Available | ||||
MALE
Harness
14D231
FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * | * | ||
| 2 | * | * | ||
| 3 | * | * | ||
| 4 | * | * | ||
| 5 | CBX03 (BU-RD) | 20 | 14D231 | |
| 5 | SBP02 (YE-RD) | 20 | 14A005 | |
| 6 | * | * | ||
| 7 | * | * | ||
| 8 | * | * | ||
| 9 | * | * | ||
| 10 | VDB06 (GY-OG) | 20 | 14D231 | |
| 10 | VDB06 (GY-OG) | 22 | 14A005 | |
| 11 | VDB07 (VT-OG) | 20 | 14D231 | |
| 11 | VDB07 (VT-OG) | 22 | 14A005 | |
| 12 | * | * | ||
| 13 | CPP22 (GY-BN) | 18 | 14D231 | |
| 13 | CPP22 (GY-BN) | 20 | 14A005 | |
| 14 | CPP04 (GY) | 20 | 14A005 | |
| 14 | CPP04 (GY-OG) | 18 | 14D231 | |
| 15 | CPP18 (BN-VT) | 20 | 14D231 | |
| 15 | VPP08 (WH) | 20 | 14A005 | |
| 16 | * | * | ||
| 17 | * | * | ||
| 18 | * | * | ||
| 19 | * | * | ||
| 20 | * | * | ||
| 21 | CBX04 (WH-RD) | 16 | 14D231 | |
| 21 | SBP02 (YE-RD) | 20 | 14A005 | |
| 22 | * | * | ||
| 23 | * | * | ||
| 24 | * | * | ||
| 25 | * | * | ||
| 26 | * | * | ||
| 27 | * | * | ||
| 28 | * | * | ||
| 29 | * | * | ||
| 30 | * | * | ||
| 31 | GD382 (BK-GY) | 12 | 14A005 | |
| 31 | GD906 (BK-GY) | 14 | 14D231 | |
| 32 | * | * | ||
| 33 | * | * | ||
| 34 | CPP23 (VT-GN) | 18 | 14D231 | |
| 34 | CPP23 (VT-GY) | 20 | 14A005 | |
| 35 | CPP03 (GN-VT) | 18 | 14D231 | |
| 35 | CPP03 (GN-VT) | 20 | 14A005 | |
| 36 | * | * | ||
| 37 | * | * | ||
| 38 | * | * | ||
| 39 | * | * | ||
| 40 | * | * | ||
| 41 | * | * | ||
| 42 | * | * | ||
| 43 | * | * | ||
| 44 | * | * | ||
| 45 | RPP07 (YE-GN) | 20 | 14D231 | |
| 45 | VPP17 (VT-BN) | 20 | 14A005 | |
| 46 | * | * | ||
| 47 | * | * | ||
| 48 | * | * | ||
| 49 | * | * | ||
| 50 | * | * | ||
| 51 | CPP05 (WH-VT) | 20 | 14A005 | |
| 51 | RPP06 (GN) | 20 | 14D231 | |
| 52 | GD382 (BK-GY) | 20 | 14A005 | |
| 52 | GD905 (BK-GN) | 20 | 14D231 | |
| 53 | * | * | ||
| 54 | * | * | ||
| 55 | * | * | ||
| 56 | * | * | ||
| 57 | * | * | ||
| 58 | * | * |
