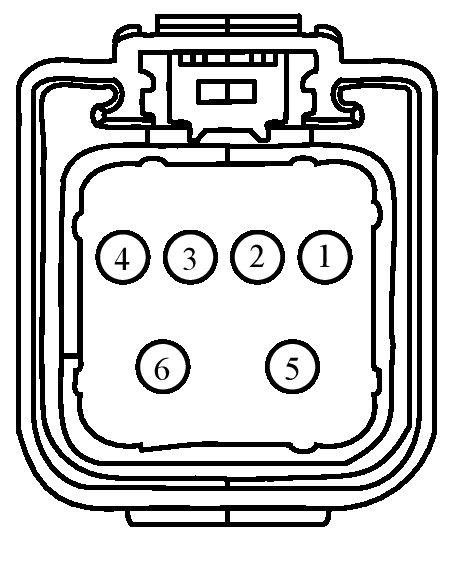

Connector End View (C297A) - BLOWER MOTOR CONTROL MODULE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C297A |
BLOWER MOTOR CONTROL MODULE |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VH101 (WH-VT) |
26 |
CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL |
DU5T-14474-AA |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
GD216 (BK-VT) |
10 |
GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |
XW4T-14474-TA |
| 6 |
CH402 (YE-GN) |
10 |
RELAY - FRONT BLOWER |
XW4T-14474-TA |
