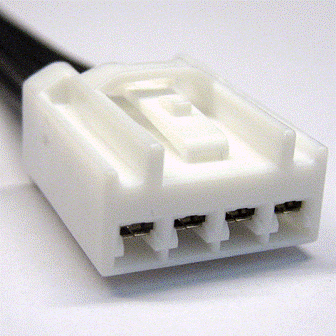

Connector End View (C278) - BRAKE PEDAL POSITION (BPP) SWITCH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C278	BRAKE PEDAL POSITION (BPP) SWITCH	NA	12A581	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB54 (BN-RD)	20	FUSE - 54 OR CIRCUIT BREAKER	DU5T-14474-JAA
2	CES09 (VT-OG)	20	SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) +	DU5T-14474-JAA
3	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT	DU5T-14474-JAA
4	CCB08 (VT-WH)	22	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN	DU5T-14474-KAA

Available Pigtail Kits

Pigtail Kit Part Number WPT-912

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-HA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Sensor - Oil Temperature
Sensor - Power Steering Pressure
Sensor - Purge Flow
Switch - Gear Shift Select/Neutral Safety
