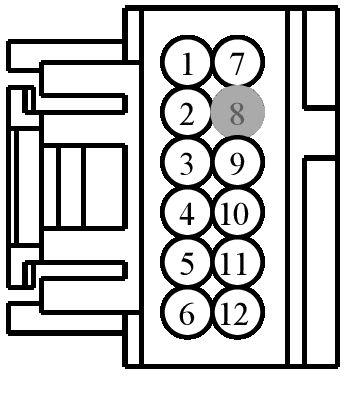

Connector End View (C263) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C263 | INLINE | GY | 14C21014401 | See Below | ||||
MALE
Harness
14C210
FEMALE
Harness
14401
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | VDB25 (GN-OG) | 22 | 14401 | |
| 1 | VDB25 (GN-OG) | 26 | ||
| 2 | VDB26 (GY-BU) | 22 | 14401 | |
| 2 | VDB26 (GY-BU) | 26 | ||
| 3 | CBB23 (BN-YE) | 18 | 14401 | |
| 3 | CBB23 (BN-YE) | 20 | 14C210 | |
| 4 | RLF14 (GY-BN) | 26 | ||
| 5 | VH417 (YE-OG) | 26 | ||
| 6 | VLF14 (BU-BN) | 26 | ||
| 7 | VH416 (VT-GY) | 26 | ||
| 8 | * | * | ||
| 9 | SBP32 (VT-RD) | 20 | 14401 | |
| 9 | SBP32 (VT-RD) | 20 | 14C210 | |
| 10 | VDB06 (GY-OG) | 26 | ||
| 11 | VDB07 (VT-OG) | 26 | ||
| 12 | GD214 (BK-BU) | 18 | 14401 |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1185
Service Part Number:
BU2Z-14S411-AJA
Gauge:
18
Pin material:
Tin (greased)
Cavities:
12
Vehicle Uses:
- Camera - Reverse Park Aid
- Switch - Gear Shift Select/Neutral Safety
Pigtail Kit Part Number WPT-949
Service Part Number:
3U2Z-14S411-BMAB
Gauge:
18
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Control - Navigation Display
- Module - Driver Door
- Module - Front Interface
- Monitor - Video/DVD
- Switch - Gear Shift Select/Neutral Safety
