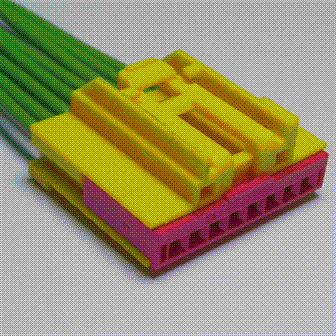

Connector End View (C256) - PASSENGER AIRBAG

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C256	PASSENGER AIRBAG	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1L2T-14474-CA	DU2Z-14474-BA	0.64

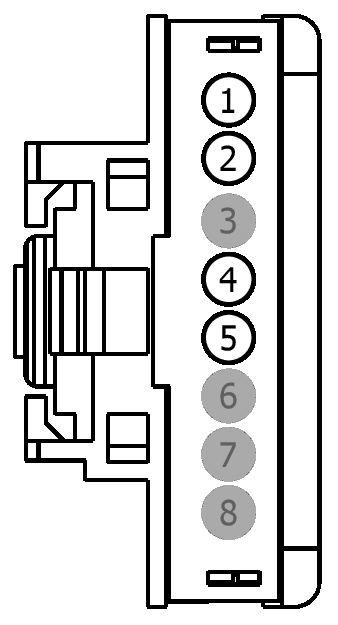

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR103 (GY-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 +	1L2T-14474-CA
2	RR103 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 -	1L2T-14474-CA
3	*	*	Not Used	N/A
4	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 +	1L2T-14474-CA
5	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 -	1L2T-14474-CA
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1397

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-DB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Clockspring
Module - Power Steering
