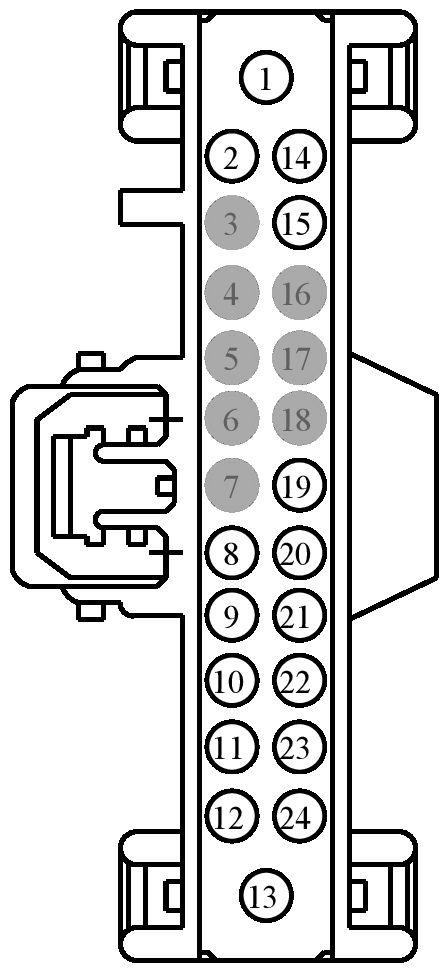

Connector End View (C240A) - AUDIO FRONT CONTROL MODULE (ACM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C240A	AUDIO FRONT CONTROL MODULE (ACM)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BA	DU2Z-14474-CA	0.64
8U5T-14474-CA	DU2Z-14474-CA	0.64
97BG-14474-BBA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP33 (WH-BN)	16	FUSE - 33 OR CIRCUIT BREAKER	97BG-14474-BBA
2	CME36 (GN-VT)	18	CTRL MOD. - AUDIO HEAD UNIT # ANTENNA REAR WINDOW AMPLIFIER	8U5T-14474-CA
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	RME06 (GY-YE)	20	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 -	8U5T-14474-BA
8	VMEA6 (YE-BU)	26	CTRL MOD. - ACTIVE NOISE CANCELLATION # RIGHT FRONT ANC -	8U5T-14474-BA
9	RME09 (BN-YE)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER -	8U5T-14474-CA
9	RME79 (BN-VT)	26	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT REAR FULL RANGE -	8U5T-14474-CA
10	RME07 (WH-BN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE -	8U5T-14474-CA
10	RME58 (BN-BU)	26	CTRL MOD. - AUDIO # OUTPUT LEFT 2 - (OBSOLETE)	8U5T-14474-CA
11	RME10 (WH-OG)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE -	8U5T-14474-CA
11	RME59 (WH-GN)	26	CTRL MOD. - AUDIO # OUTPUT RIGHT 2 - (OBSOLETE)	8U5T-14474-CA
12	RME12 (BN-BU)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER -	8U5T-14474-CA
12	RME78 (GY)	26	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT REAR FULL RANGE -	8U5T-14474-CA
13	GD215 (BK-GY)	16	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	97BG-14474-BBA
14	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	8U5T-14474-BA
14	VDB29 (GN-BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	8U5T-14474-BA
15	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	8U5T-14474-BA
15	VDB30 (WH-GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	8U5T-14474-BA
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	DME58 (*)	20	CTRL MOD. - AUDIO # OUTPUT (OBSOLETE)	8U5T-14474-BA
20	VME06 (GN)	20	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 +	8U5T-14474-BA
20	VMEA5 (GN-VT)	26	CTRL MOD. - ACTIVE NOISE CANCELLATION # RIGHT FRONT ANC +	8U5T-14474-BA
21	VME09 (WH-GN)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER +	8U5T-14474-CA
21	VME79 (GY-VT)	26	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT REAR FULL RANGE +	8U5T-14474-CA
22	VME07 (WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE +	8U5T-14474-CA
22	VME58 (YE-VT)	26	CTRL MOD. - AUDIO # OUTPUT LEFT 2 + (OBSOLETE)	8U5T-14474-CA
23	VME10 (WH-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE +	8U5T-14474-CA
23	VME59 (YE-OG)	26	CTRL MOD. - AUDIO # OUTPUT RIGHT 2 + (OBSOLETE)	8U5T-14474-CA
24	VME12 (BN-WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER +	8U5T-14474-CA
24	VME78 (GN-VT)	26	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT REAR FULL RANGE +	8U5T-14474-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1533

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALB

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

DVD Player
Module - Audio Control
Module - Body Control
Module - Fuel and Damper Control
Module - Gateway
Radio
Test Connector - Diagnostic

Pigtail Kit Part Number WPT-1440

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALA

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

DVD Player
Module - Audio Control
Module - Body Control
Module Gateway
Radio
Test Connector - Diagnostic
