Connector End View (C238) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C238 | INLINE | BK | 1440112A581 | Not Available | ||||

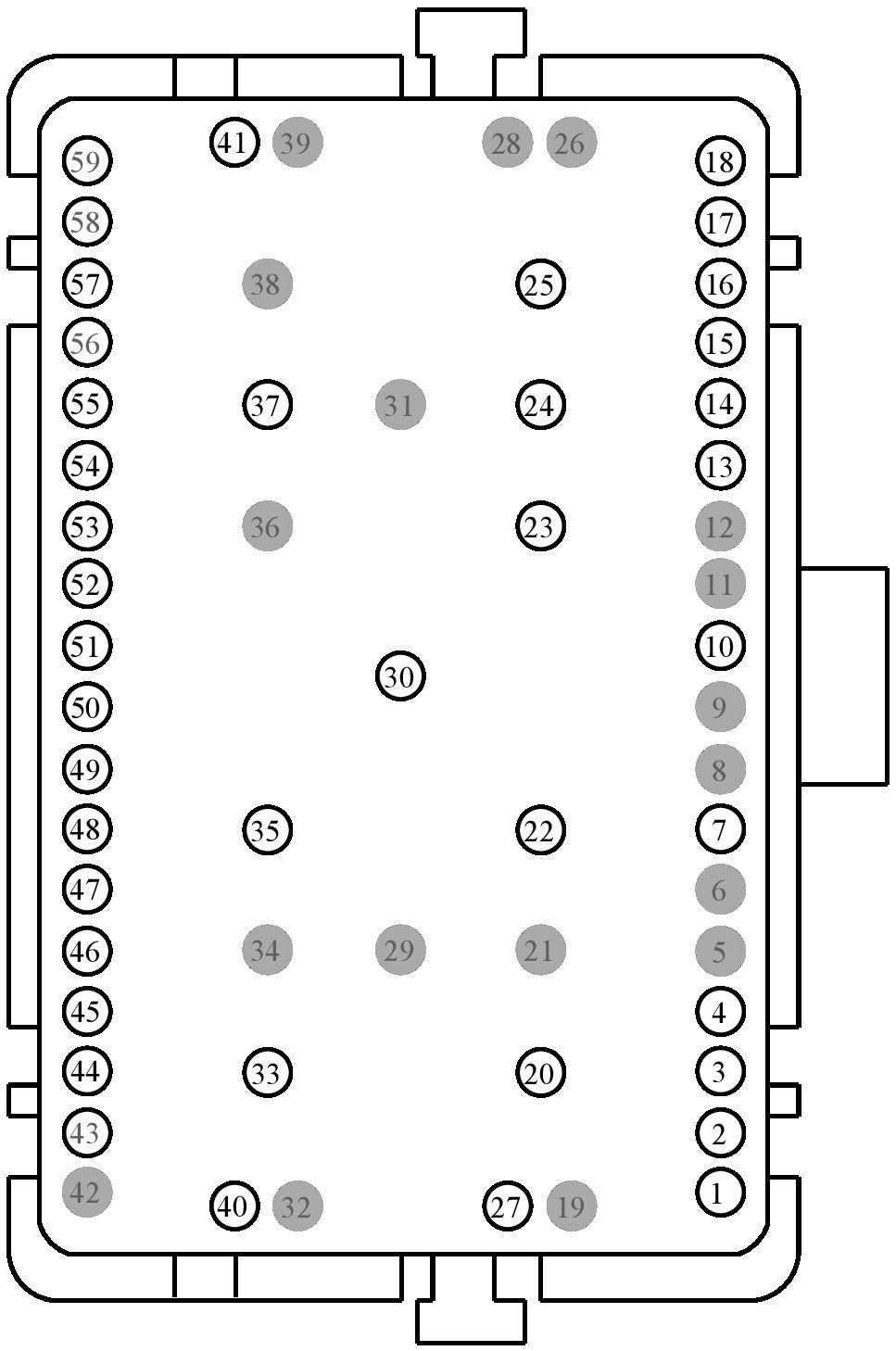

MALE
Harness
14401

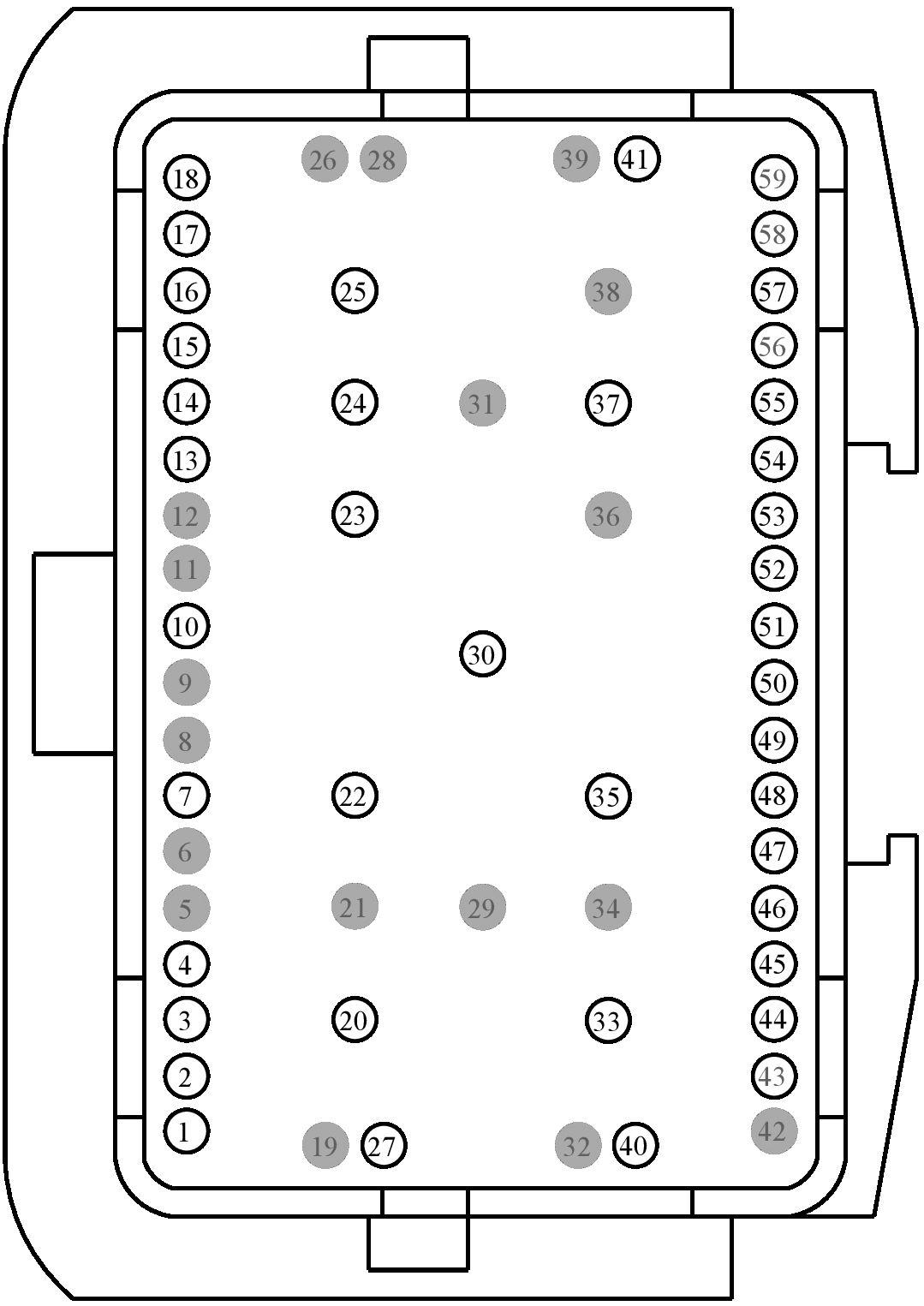

FEMALE
Harness
12A581
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | DMP25 (*) | 20 | ||
| 2 | VMP25 (BN-YE) | 22 | ||
| 3 | VMP26 (YE-BU) | 22 | ||
| 4 | VMP24 (WH) | 22 | 12A581 | |
| 4 | VMP24 (WH) | 26 | 14401 | |
| 5 | * | * | ||
| 6 | * | * | ||
| 7 | CCB08 (VT-WH) | 20 | 14401 | |
| 7 | CCB08 (VT-WH) | 22 | 12A581 | |
| 8 | * | * | ||
| 9 | * | * | ||
| 10 | CRD02 (BN-BU) | 22 | ||
| 11 | * | * | ||
| 12 | * | * | ||
| 13 | CCB24 (WH-OG) | 20 | ||
| 14 | CCB23 (VT-GN) | 20 | ||
| 15 | CCB22 (WH-BN) | 20 | ||
| 16 | CCB21 (GN-VT) | 20 | ||
| 17 | CCB25 (BN) | 20 | ||
| 18 | CCB20 (BU-WH) | 20 | ||
| 19 | * | * | ||
| 20 | CBB20 (YE-VT) | 20 | 14401 | |
| 20 | CBB20 (YE-VT) | 22 | 12A581 | |
| 21 | * | * | ||
| 22 | CDC35 (BU-WH) | 20 | 12A581 | |
| 22 | CPK34 (BN-VT) | 20 | 14401 | |
| 22 | CPK34 (BN-VT) | 22 | 14401 | |
| 23 | SBB05 (GY-RD) | 16 | ||
| 24 | SBB16 (VT-RD) | 16 | ||
| 25 | SBB65 (RD) | 16 | ||
| 26 | * | * | ||
| 27 | RE407 (YE-VT) | 22 | 12A581 | |
| 27 | RE407 (YE-VT) | 26 | 14401 | |
| 27 | RE454 (YE-GN) | 22 | 12A581 | |
| 28 | * | * | ||
| 29 | * | * | ||
| 30 | CH402 (YE-GN) | 10 | ||
| 31 | * | * | ||
| 32 | * | * | ||
| 33 | VLF22 (VT-GN) | 22 | ||
| 34 | * | * | ||
| 35 | SBB10 (YE-RD) | 16 | ||
| 36 | * | * | ||
| 37 | CDC43 (YE-BU) | 18 | ||
| 38 | * | * | ||
| 39 | * | * | ||
| 40 | CET43 (GY) | 20 | 12A581 | |
| 40 | CET43 (GY) | 26 | 14401 | |
| 41 | CBB23 (BN-YE) | 18 | 14401 | |
| 41 | CBB23 (BN-YE) | 20 | 12A581 | |
| 42 | * | * | ||
| 43 | * | * | ||
| 44 | RR130 (GN-BU) | 20 | ||
| 45 | VR214 (WH-BU) | 20 | ||
| 46 | RR129 (YE-GY) | 20 | ||
| 47 | VR213 (VT-GN) | 20 | ||
| 48 | VDB25 (GN-OG) | 22 | ||
| 49 | VDB26 (GY-BU) | 22 | ||
| 50 | VDB04 (WH-BU) | 22 | ||
| 51 | VDB05 (WH) | 22 | ||
| 52 | VDN05 (YE-GY) | 22 | ||
| 53 | CET42 (GN-VT) | 20 | 12A581 | |
| 53 | CET42 (GN-VT) | 26 | 14401 | |
| 54 | CMC20 (VT) | 20 | 12A581 | |
| 54 | CMC20 (VT) | 26 | 14401 | |
| 55 | CH123 (VT-GN) | 22 | ||
| 56 | * | * | ||
| 57 | CRW15 (BN-WH) | 22 | ||
| 58 | * | * |
