Connector End View (C237) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C237 | INLINE | GY | 1440112A581 | See Below | ||||

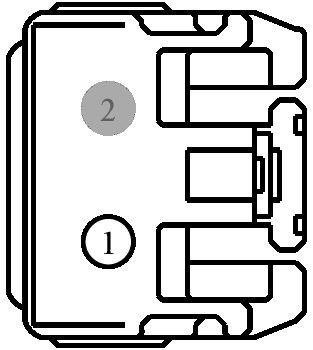

MALE
Harness
14401
FEMALE
Harness
12A581
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | SBF05 (GY-RD) | 10 |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1190
Service Part Number:
3U2Z-14S411-EFAB
Gauge:
10
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Terminal - Rear Window Defroster Grid
Pigtail Kit Part Number WPT-1486
Service Part Number:
3U2Z-14S411-PB
Gauge:
12
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Inverter - DC to AC
- Module - Heated Seat
- Module - Lighting Control
- Module - Seat Memory
- Module - Variable Speed Blower Controller
- Motor - Heater/AC Blower (Auxiliary)
- Motor - Heater/AC Blower (Front)
- Radio - Amplifier
- Relay - Blower Motor
- Relay - Trailer Tow
- Resistor - Blower Motor (Front)
- Switch - Heater / A/C Blower (Front)
- Terminal - Rear Window Defroster Grid
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-236
Service Part Number:
3U2Z-14S411-PA
Gauge:
10
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Mirror - Vanity
- Module - Seat Memory
- Motor - Heater/AC Blower (Auxiliary)
- Motor - Heater/AC Blower (Front)
- Radio - Amplifier
- Resistor - Blower Motor (Front)
- Switch - Heater / A/C Blower (Front)
