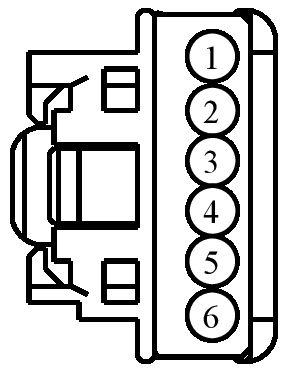

Connector End View (C233) - IN-VEHICLE TEMPERATURE AND HUMIDITY SENSOR

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C233	IN-VEHICLE TEMPERATURE AND HUMIDITY SENSOR	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64
9U5T-14474-NA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VHA31 (GN-BN)	22	SENSOR - REAR TEMP	9U5T-14474-LA
2	VH414 (GN-BU)	26	SENSOR - INCAR TEMP.	9U5T-14474-NA
3	LH111 (BN-WH)	22	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS	9U5T-14474-LA
4	VH413 (WH-BU)	26	SENSOR - HUMIDITY	9U5T-14474-NA
5	RH111 (GY-BU)	22	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS	9U5T-14474-LA
6	CBP21 (BU-GY)	22	FUSE - 21 OR CIRCUIT BREAKER	9U5T-14474-LA

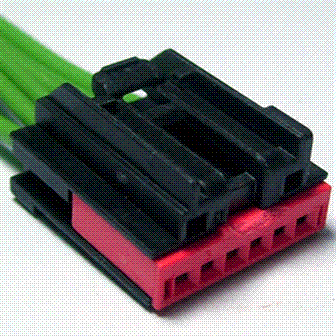

Available Pigtail Kits

Pigtail Kit Part Number WPT-1242

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MJB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Indicator - Passenger Airbag Deactivation (PADI)
Sensor - EATC In Car Temperature
Switch - Multifunction
