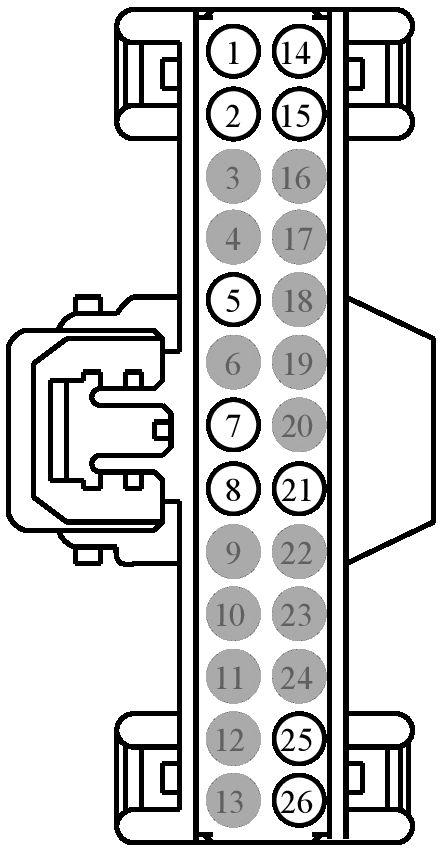

Connector End View (C220) - INSTRUMENT PANEL CLUSTER (IPC)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C220 |
INSTRUMENT PANEL CLUSTER (IPC) |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 8U5T-14474-BA |
DU2Z-14474-CA |
0.64 |
| DU5T-14474-EAA |
DU2Z-14474-CA |
0.64 |
| 9U5T-14474-XA |
DU2Z-14474-CA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RMC33 (WH-VT) |
22 |
CTRL MOD. - SENSOR FUEL LEVEL 2 |
8U5T-14474-BA |
| 2 |
RMC32 (GN-BU) |
22 |
CTRL MOD. - SENSOR FUEL LEVEL |
8U5T-14474-BA |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
GD214 (BK-BU) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE |
DU5T-14474-EAA |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CET52 (GN) |
26 |
SWITCH - TRANSMISSION PARK DETECT |
9U5T-14474-XA |
| 8 |
CMC20 (VT) |
26 |
SWITCH - LOW LEVEL WASHER FLUID |
9U5T-14474-XA |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
VMC23 (GN-OG) |
22 |
SENSOR - FUEL LEVEL 2 (FLI) |
8U5T-14474-BA |
| 15 |
VMC11 (YE-VT) |
22 |
SENSOR - FUEL LEVEL (FLI) |
8U5T-14474-BA |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
SBP13 (GY-RD) |
22 |
FUSE - 13 OR CIRCUIT BREAKER |
8U5T-14474-BA |
| 22 |
* |
* |
Not Used |
N/A |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
* |
* |
Not Used |
N/A |
| 25 |
VDB29 (GN-BU) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH |
DU5T-14474-EAA |
| 25 |
VDB29 (GN-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH |
DU5T-14474-EAA |
| 25 |
VDB29 (GN-BU) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH |
DU5T-14474-EAA |
| 26 |
VDB30 (WH-GN) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW |
DU5T-14474-EAA |
| 26 |
VDB30 (WH-GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW |
DU5T-14474-EAA |
| 26 |
VDB30 (WH-GN) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW |
DU5T-14474-EAA |
