Connector End View (C218B) - CLOCKSPRING

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

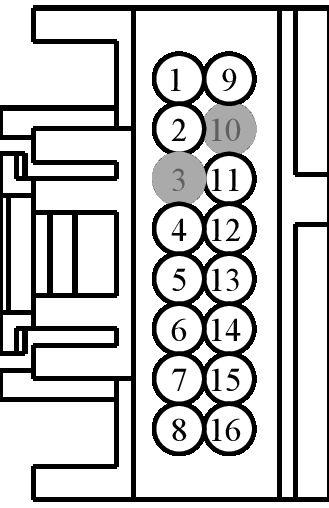

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218B	CLOCKSPRING	GY	PIA	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	N/A
2	* (*)	*	CTRL MOD. - HEATER STEERING WHEEL # SENSOR	N/A
3	*	*	Not Used	N/A
4	* (*)	*	CTRL MOD. - SWITCH HORN	N/A
5	* (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	N/A
6	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3	N/A
7	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4	N/A
8	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)	N/A
9	* (*)	*	CTRL MOD. - HEATER STEERING WHEEL # SENSOR POWER	N/A
10	*	*	Not Used	N/A
11	* (*)	*	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
12	* (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	N/A
13	* (*)	*	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	N/A
14	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1	N/A
15	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2	N/A
16	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT)	N/A

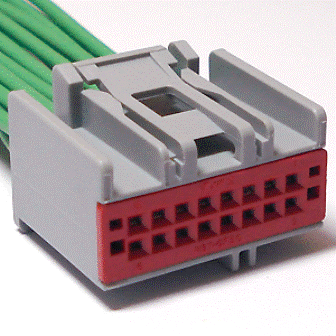

Available Pigtail Kits

Pigtail Kit Part Number WPT-968

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DPB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Reverse Park Aid (RPA)
Radio
Switch - Power Window - Driver
Switch - Reverse Park Aid
