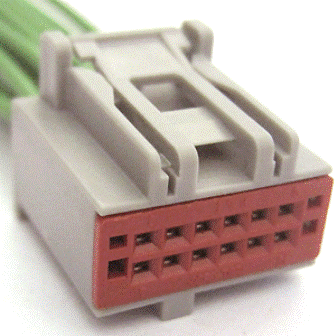

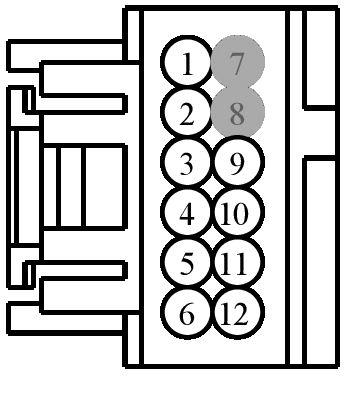

Connector End View (C218A) - CLOCKSPRING

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218A	CLOCKSPRING	GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE407 (YE-VT)	26	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	9U5T-14474-NA
1	VLN04 (VT-GY)	26	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-NA
2	CET42 (GN-VT)	26	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	9U5T-14474-NA
2	RHS73 (BN-BU)	22	CTRL MOD. - HEATER STEERING WHEEL # SENSOR	9U5T-14474-LA
3	CET43 (GY)	26	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	9U5T-14474-NA
3	CHS71 (BU)	22	CTRL MOD. - HEATER STEERING WHEEL # SENSOR POWER	9U5T-14474-LA
4	GD215 (BK-GY)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	9U5T-14474-MA
4	GD215 (BK-GY)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	9U5T-14474-LA
4	VLN04 (VT-GY)	26	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-NA
5	RRH02 (GN-WH)	22	CTRL MOD. - SWITCH HORN	9U5T-14474-LA
6	GD215 (BK-GY)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	9U5T-14474-LA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2 +	1L2T-14474-CA
10	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2 -	1L2T-14474-CA
11	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1+	1L2T-14474-CA
11	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -	1L2T-14474-CA
12	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1+	1L2T-14474-CA
12	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -	1L2T-14474-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-949

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BMAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Control - Navigation Display
Module - Driver Door
Module - Front Interface
Monitor - Video/DVD
Switch - Gear Shift Select/Neutral Safety
