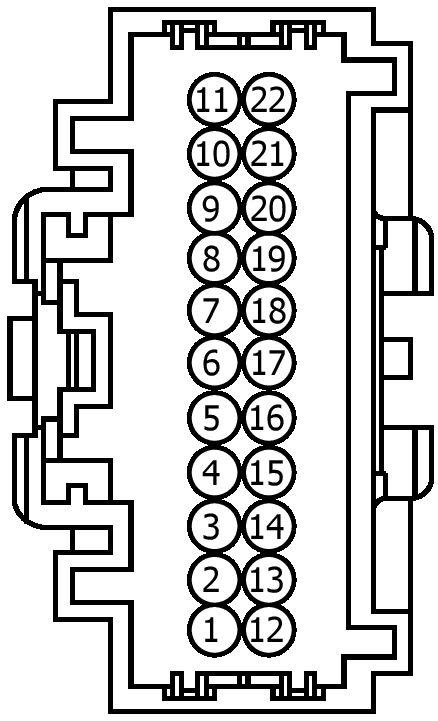

Connector End View (C212) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C212 | INLINE | 14A00514401 | Not Available | |||||
MALE
Harness
14A005
FEMALE
Harness
14401
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | VDB06 (GY-OG) | 22 | 14401 | |
| 1 | VDB06 (GY-OG) | 26 | 14A005 | |
| 2 | VDB07 (VT-OG) | 22 | 14401 | |
| 2 | VDB07 (VT-OG) | 26 | 14A005 | |
| 3 | CBB23 (BN-YE) | 18 | 14401 | |
| 3 | CBB23 (BN-YE) | 20 | 14A005 | |
| 4 | VDB29 (GN-BU) | 26 | ||
| 5 | VDB30 (WH-GN) | 26 | ||
| 6 | VPP08 (WH) | 20 | ||
| 7 | VPP17 (VT-BN) | 20 | ||
| 8 | VDB06 (GY-OG) | 26 | ||
| 9 | VDB07 (VT-OG) | 26 | ||
| 10 | CPP03 (GN-VT) | 20 | ||
| 11 | CPP04 (GY) | 20 | ||
| 12 | CPP22 (GY-BN) | 20 | ||
| 13 | CPP23 (VT-GY) | 20 | ||
| 14 | CPP05 (WH-VT) | 20 | ||
| 15 | VDB29 (GN-BU) | 26 | ||
| 16 | VDB30 (WH-GN) | 26 | ||
| 17 | VDB25 (GN-OG) | 22 | 14401 | |
| 17 | VDB25 (GN-OG) | 22 | ||
| 17 | VDB25 (GN-OG) | 26 | 14401 | |
| 18 | VDB26 (GY-BU) | 22 | 14401 | |
| 18 | VDB26 (GY-BU) | 22 | ||
| 18 | VDB26 (GY-BU) | 26 | 14401 | |
| 19 | HYA01 (OG-GN) | 20 | ||
| 20 | HYA02 (OG-WH) | 20 | ||
| 21 | LYA03 (YE-VT) | 22 | 14A005 | |
| 21 | LYA03 (YE-VT) | 26 | 14401 | |
| 22 | RYA03 (BU-BN) | 22 | 14A005 |
