Connector End View (C175E) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C175E POWERTRAIN CONTROL MODULE (PCM) 12C508 part# N/A Not Available

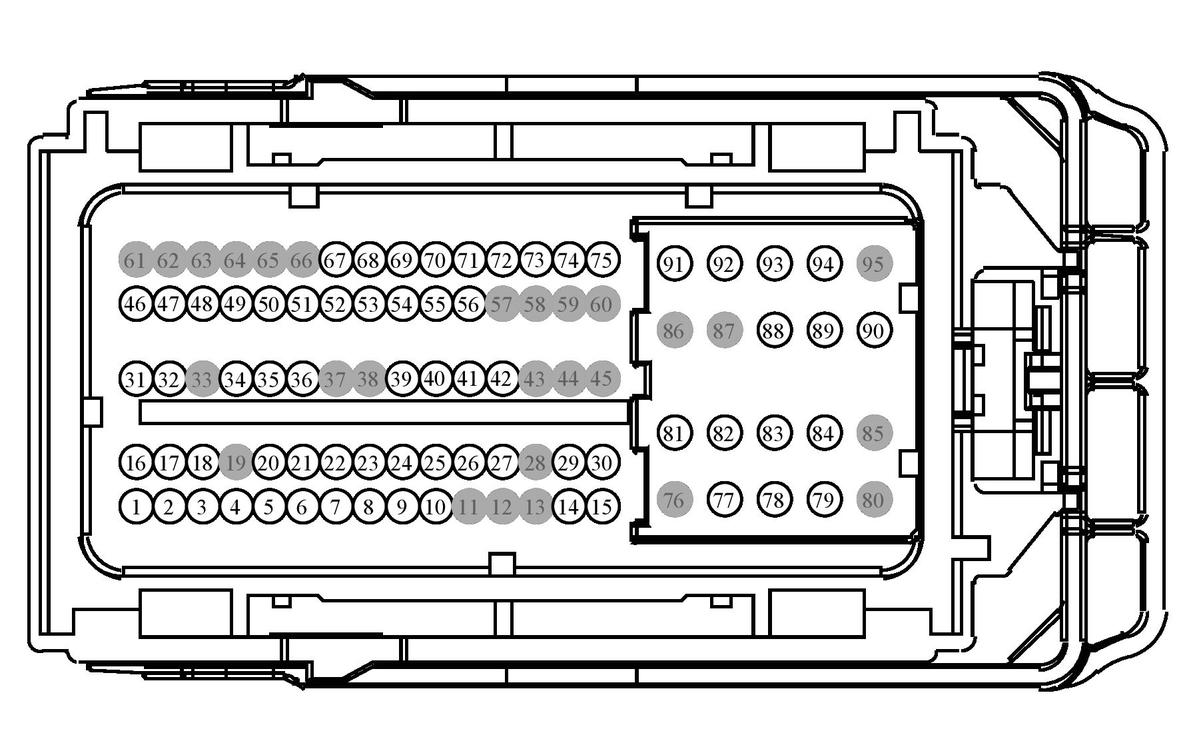

GFDWR668Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-BB Not Available
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE205 (GN-BU) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + BU5T-14474-AB
2 CE208 (YE-OG) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + BU5T-14474-AB
3 CE206 (GY-YE) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + BU5T-14474-AB
4 CE422 (WH-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) BU5T-14474-BB
5 CE421 (VT) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1) BU5T-14474-BB
6 CE443 (BN-VT) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4 BU5T-14474-BB
7 CE442 (YE-GY) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 3 BU5T-14474-BB
8 LE134 (YE) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) BU5T-14474-AB
9 VE819 (GN-VT) 20 SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS) BU5T-14474-AB
10 VE818 (BN) 20 SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) BU5T-14474-AB
11 * * Not Used N/A
12 * * Not Used N/A
13 * * Not Used N/A
14 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] BU5T-14474-AB
15 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] BU5T-14474-AB
16 CE209 (BN) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) + BU5T-14474-AB
17 LE111 (VT-GN) 18 CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) BU5T-14474-BB
18 CBK01 (BU) 20 FUSE - 1 OR CIRCUIT BREAKER (VPWR F) BU5T-14474-AB
19 * * Not Used N/A
20 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) BU5T-14474-BB
21 LE449 (VT-GN) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21) BU5T-14474-BB
22 RET24 (BN-BU) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) BU5T-14474-BB
23 RE134 (BU-OG) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) BU5T-14474-AB
24 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) BU5T-14474-AB
25 RET33 (WH-VT) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) - BU5T-14474-AB
26 RET04 (YE-OG) 20 CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) BU5T-14474-AB
27 VE740 (VT-GY) 18 SENSOR - INTAKE AIR TEMPERATURE (IAT) BU5T-14474-BB
28 * * Not Used N/A
29 RE405 (GN-WH) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) BU5T-14474-BB
30 VET31 (BU-OG) 20 SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] BU5T-14474-AB
31 CE207 (VT-GY) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + BU5T-14474-AB
32 VE803 (BU-GN) 18 SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + BU5T-14474-BB
33 * * Not Used N/A
34 LE458 (BU-WH) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) BU5T-14474-BB
35 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) BU5T-14474-BB
36 LE450 (WH) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21) BU5T-14474-BB
37 * * Not Used N/A
38 * * Not Used N/A
39 DE135 (BK) 18 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) D BU5T-14474-BB
40 RE429 (GY-OG) 20 CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) BU5T-14474-AB
41 VE707 (GN-VT) 20 SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) + BU5T-14474-AB
42 VE738 (YE-BU) 18 SENSOR - CAMSHAFT POSITION BANK 2 EX BU5T-14474-BB
43 * * Not Used N/A
44 * * Not Used N/A
45 * * Not Used N/A
46 CE210 (GN-WH) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) + BU5T-14474-AB
47 VE712 (BU-GY) 20 SENSOR - CYLINDER HEAD TEMPERATURE (CHT) BU5T-14474-AB
48 CMC24 (GY) 18 SWITCH - OIL PRESSURE BU5T-14474-BB
49 RE454 (YE-GN) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 BU5T-14474-BB
50 VE826 (BN-VT) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) BU5T-14474-BB
51 VE827 (WH-GN) 18 SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21) BU5T-14474-BB
52 RE323 (WH-BN) 18 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - BU5T-14474-BB
53 VE801 (VT-OG) 18 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] BU5T-14474-BB
54 RE429 (GY-OG) 20 CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) BU5T-14474-AB
55 VE706 (BN-BU) 20 SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) + BU5T-14474-AB
56 VE736 (WH-GN) 18 SENSOR - CAMSHAFT POSITION BANK 1 EX BU5T-14474-BB
57 * * Not Used N/A
58 * * Not Used N/A
59 * * Not Used N/A
60 * * Not Used N/A
61 * * Not Used N/A
62 * * Not Used N/A
63 * * Not Used N/A
64 * * Not Used N/A
65 * * Not Used N/A
66 * * Not Used N/A
67 RE324 (BN-GN) 18 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-] BU5T-14474-BB
68 VE802 (BN-BU) 18 SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+] BU5T-14474-BB
69 RE135 (GN-BN) 18 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - BU5T-14474-BB
70 VE711 (YE-VT) 18 SENSOR - CRANKSHAFT POSITION (CKPP) + BU5T-14474-BB
71 CE113 (WH-BN) 20 CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) BU5T-14474-AB
72 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] BU5T-14474-AB
73 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] BU5T-14474-AB
74 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] BU5T-14474-AB
75 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] BU5T-14474-AB
76 * * Not Used N/A
77 CET19 (VT-GY) 18 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 2 (SS2) 7C3T-14474-DA
78 CE233 (WH-OG) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) 7C3T-14474-DA
79 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) 7C3T-14474-DA
80 * * Not Used N/A
81 CE426 (BU-GN) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) 7C3T-14474-DA
82 CE412 (YE-VT) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) 7C3T-14474-DA
83 CE234 (BU-WH) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) 7C3T-14474-DA
84 CE236 (GY-VT) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21) 7C3T-14474-DA
85 * * Not Used N/A
86 * * Not Used N/A
87 * * Not Used N/A
88 CE305 (BU-OG) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) 7C3T-14474-DA
89 CE306 (GN-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) 7C3T-14474-DA
90 CE307 (WH-BN) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP-E) 7C3T-14474-DA
91 CET25 (BU-GN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) 7C3T-14474-DA
92 CE304 (YE-BU) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) 7C3T-14474-DA
93 CE303 (WH-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) 7C3T-14474-DA
94 CE308 (VT-BN) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP-F) 7C3T-14474-DA
95 * * Not Used N/A
