Connector End View (C175B) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C175B POWERTRAIN CONTROL MODULE (PCM) 12A581 part# N/A Not Available

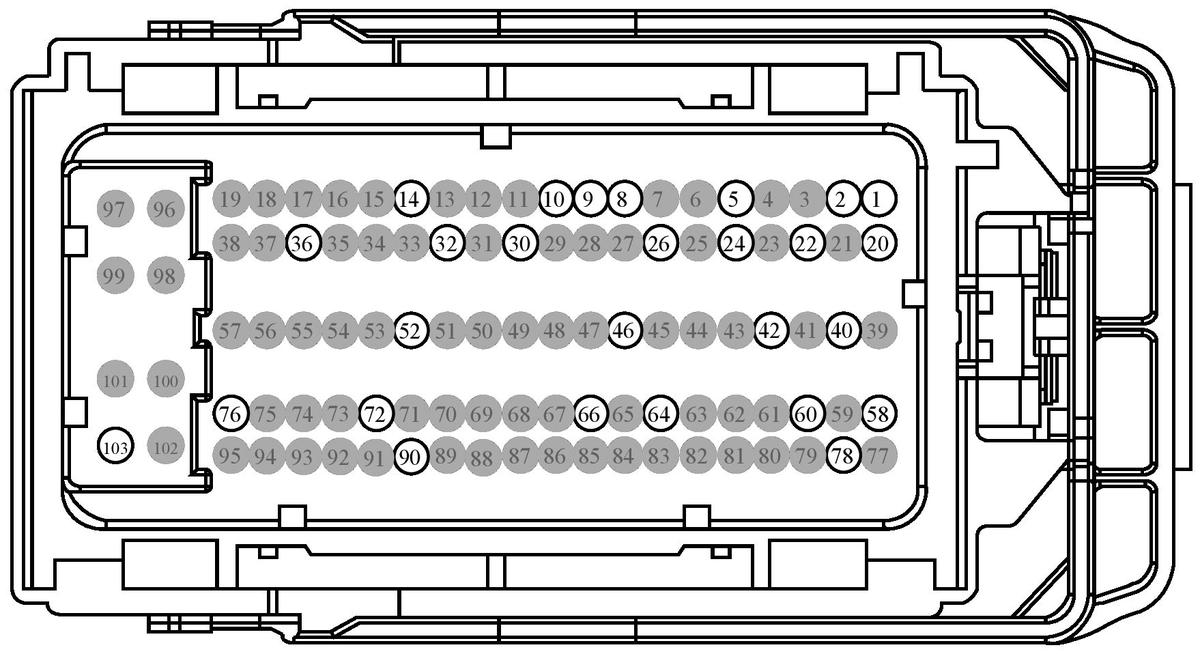

GFDWR667Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CDC54 (WH-GN) 22 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) BU5T-14474-AB
2 VE462 (WH-BN) 22 CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE BU5T-14474-AB
3 * * Not Used N/A
4 * * Not Used N/A
5 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT BU5T-14474-AB
6 * * Not Used N/A
7 * * Not Used N/A
8 VET30 (YE) 20 SENSOR - TRANSMISSION RANGE # 2 (TR2) [DTRS] BU5T-14474-AB
9 VET29 (VT-WH) 20 SENSOR - TRANSMISSION RANGE # 1 (TR1) [DTRS] BU5T-14474-AB
10 CEC01 (WH-BU) 20 CTRL MOD. - COOLING FAN CONTROL (FC2) BU5T-14474-AB
11 * * Not Used N/A
11 VET27 (BN-YE) 22 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) BU5T-14474-AB
12 * * Not Used N/A
12 * * Not Used N/A
13 * * Not Used N/A
13 CDC10 (BU-OG) 22 CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) BU5T-14474-AB
14 VE225 (YE-OG) 20 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) BU5T-14474-AB
14 * * Not Used N/A
15 * * Not Used N/A
15 CH302 (WH-BN) 22 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) BU5T-14474-AB
16 * * Not Used N/A
16 * * Not Used N/A
17 * * Not Used N/A
17 CEC01 (WH-BU) 20 CTRL MOD. - COOLING FAN CONTROL (FC2) BU5T-14474-AB
17 CEC02 (GN-BU) 20 CTRL MOD. - COOLING FAN CONTROL (FC1) BU5T-14474-AB
18 * * Not Used N/A
18 * * Not Used N/A
19 * * Not Used N/A
19 * * Not Used N/A
20 CE237 (BN-WH) 20 CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM) BU5T-14474-AB
20 * * Not Used N/A
21 * * Not Used N/A
21 * * Not Used N/A
22 CET42 (GN-VT) 20 SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) BU5T-14474-AB
22 * * Not Used N/A
23 * * Not Used N/A
23 CET43 (GY) 20 SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) BU5T-14474-AB
24 VCF34 (WH) 20 CTRL MOD. - ALL WHEEL DRIVE # MONITOR (AWDM) BU5T-14474-AB
24 * * Not Used N/A
25 * * Not Used N/A
25 * * Not Used N/A
26 CDC15 (VT) 22 GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) BU5T-14474-AB
26 * * Not Used N/A
27 * * Not Used N/A
27 VE518 (BN-WH) 20 MONITOR - FUEL PUMP (FPM) BU5T-14474-AB
28 * * Not Used N/A
28 * * Not Used N/A
29 * * Not Used N/A
29 LE230 (BN-BU) 20 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) BU5T-14474-AB
30 RE230 (WH-VT) 20 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER BU5T-14474-AB
30 * * Not Used N/A
31 * * Not Used N/A
31 * * Not Used N/A
32 VET31 (BU-OG) 20 SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] BU5T-14474-AB
32 * * Not Used N/A
33 * * Not Used N/A
33 VH433 (VT-OG) 20 TRANSDUCER - A/C PRESSURE (ACPT) + BU5T-14474-AB
34 * * Not Used N/A
34 * * Not Used N/A
35 * * Not Used N/A
35 RE136 (VT-GN) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) BU5T-14474-AB
36 LE136 (GN-OG) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) BU5T-14474-AB
36 * * Not Used N/A
37 * * Not Used N/A
37 * * Not Used N/A
38 * * Not Used N/A
38 * * Not Used N/A
39 * * Not Used N/A
39 CE114 (GN-BU) 20 CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) BU5T-14474-AB
40 LE137 (BU-GY) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) BU5T-14474-AB
40 * * Not Used N/A
41 * * Not Used N/A
41 * * Not Used N/A
42 CDC35 (BU-WH) 20 SWITCH - IGNITION # START BU5T-14474-AB
42 * * Not Used N/A
43 * * Not Used N/A
43 * * Not Used N/A
44 * * Not Used N/A
44 * * Not Used N/A
45 * * Not Used N/A
45 * * Not Used N/A
46 VE922 (VT-GN) 20 TRANSDUCER - FUEL TANK PRESSURE (FTPT) BU5T-14474-AB
46 * * Not Used N/A
47 * * Not Used N/A
47 VE750 (GN-BU) 20 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) BU5T-14474-AB
48 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
49 CR115 (BN) 20 CTRL MOD. - INDICATOR DEPLOYMENT (RDI) BU5T-14474-AB
50 * * Not Used N/A
50 * * Not Used N/A
51 * * Not Used N/A
51 RE407 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) BU5T-14474-AB
52 LE423 (GN-VT) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) BU5T-14474-AB
52 * * Not Used N/A
53 * * Not Used N/A
53 VDC61 (VT-GN) 22 SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR BU5T-14474-AB
54 * * Not Used N/A
54 * * Not Used N/A
55 * * Not Used N/A
55 * * Not Used N/A
56 * * Not Used N/A
56 * * Not Used N/A
57 * * Not Used N/A
57 * * Not Used N/A
58 CDC12 (YE) 22 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) BU5T-14474-AB
58 * * Not Used N/A
59 * * Not Used N/A
59 RE137 (YE-GN) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) BU5T-14474-AB
60 VE702 (BU-WH) 20 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) BU5T-14474-AB
60 * * Not Used N/A
61 * * Not Used N/A
61 VE701 (YE-OG) 20 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) BU5T-14474-AB
62 * * Not Used N/A
62 * * Not Used N/A
63 * * Not Used N/A
63 VCF35 (GN) 20 CTRL MOD. - POWERTRAIN # ALL WHEEL DRIVE COMMAND (AWDC) BU5T-14474-AB
64 CBB26 (BU-WH) 20 FUSE - 26 OR CIRCUIT BREAKER BU5T-14474-AB
64 * * Not Used N/A
65 * * Not Used N/A
65 CE436 (VT-OG) 20 CTRL MOD. -WAKE UP PCM BU5T-14474-AB
66 CES09 (VT-OG) 20 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + BU5T-14474-AB
66 * * Not Used N/A
67 * * Not Used N/A
67 CCB08 (VT-WH) 22 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN BU5T-14474-AB
68 * * Not Used N/A
68 * * Not Used N/A
69 * * Not Used N/A
69 * * Not Used N/A
70 * * Not Used N/A
70 * * Not Used N/A
71 * * Not Used N/A
71 RE731 (WH-OG) 20 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) BU5T-14474-AB
72 VE731 (YE-GN) 20 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) BU5T-14474-AB
72 * * Not Used N/A
73 * * Not Used N/A
73 * * Not Used N/A
74 * * Not Used N/A
74 * * Not Used N/A
75 * * Not Used N/A
75 VDB04 (WH-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH BU5T-14474-AB
76 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW BU5T-14474-AB
76 * * Not Used N/A
77 * * Not Used N/A
77 * * Not Used N/A
78 CH307 (GY-BU) 22 CTRL MOD. - POWERTRAIN # HEATED PUMP CONTROL RELAY (HPCR) BU5T-14474-AB
78 * * Not Used N/A
79 * * Not Used N/A
79 * * Not Used N/A
80 * * Not Used N/A
80 * * Not Used N/A
81 * * Not Used N/A
81 * * Not Used N/A
82 * * Not Used N/A
82 * * Not Used N/A
83 * * Not Used N/A
83 * * Not Used N/A
84 * * Not Used N/A
84 * * Not Used N/A
85 * * Not Used N/A
85 * * Not Used N/A
86 * * Not Used N/A
86 * * Not Used N/A
87 * * Not Used N/A
87 * * Not Used N/A
88 * * Not Used N/A
88 * * Not Used N/A
89 * * Not Used N/A
89 * * Not Used N/A
90 RE733 (GN) 20 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-AB
90 * * Not Used N/A
91 * * Not Used N/A
91 VE733 (WH) 20 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-AB
92 * * Not Used N/A
92 * * Not Used N/A
93 * * Not Used N/A
93 * * Not Used N/A
94 * * Not Used N/A
94 * * Not Used N/A
95 * * Not Used N/A
95 * * Not Used N/A
96 * * Not Used N/A
96 * * Not Used N/A
97 * * Not Used N/A
97 CBB07 (GN-BU) 16 FUSE - 7 OR CIRCUIT BREAKER 7U5T-14474-TA
98 * * Not Used N/A
98 * * Not Used N/A
99 * * Not Used N/A
99 CBB07 (GN-BU) 16 FUSE - 7 OR CIRCUIT BREAKER 7U5T-14474-TA
100 * * Not Used N/A
100 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT 7U5T-14474-TA
101 * * Not Used N/A
101 * * Not Used N/A
102 * * Not Used N/A
102 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT 7U5T-14474-TA
103 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT 7U5T-14474-TA
103 * * Not Used N/A
