Connector End View (C144) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C144 | INLINE | 12C50812A581 | See Below | |||||
MALE
Harness
12C508
FEMALE
Harness
12A581
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CBK04 (VT) | 14 | 12C508 | |
| 1 | CBK04 (VT) | 16 | 12A581 | |
| 2 | * | * | ||
| 3 | VET29 (VT-WH) | 18 | 12C508 | |
| 3 | VET29 (VT-WH) | 20 | 12A581 | |
| 4 | * | * | ||
| 5 | VET30 (YE) | 18 | 12C508 | |
| 5 | VET30 (YE) | 20 | 12A581 | |
| 6 | * | * | ||
| 7 | VE731 (YE-GN) | 18 | 12C508 | |
| 7 | VE731 (YE-GN) | 20 | 12A581 | |
| 8 | RE406 (GY-VT) | 18 | 12C508 | |
| 8 | RE731 (WH-OG) | 20 | 12A581 | |
| 9 | CBK01 (BU) | 18 | 12C508 | |
| 9 | CE608 (VT-GN) | 16 | 12A581 | |
| 10 | * | * | ||
| 11 | VET31 (BU-OG) | 20 | 12A581 | |
| 11 | VET32 (VT) | 18 | 12C508 | |
| 12 | * | * | ||
| 13 | * | * | ||
| 14 | VE733 (WH) | 18 | 12C508 | |
| 14 | VE733 (WH) | 20 | 12A581 | |
| 15 | RE407 (YE-VT) | 18 | 12C508 | |
| 15 | RE733 (GN) | 20 | 12A581 | |
| 16 | CBK02 (GN) | 16 | 12A581 |
Available Pigtail Kits

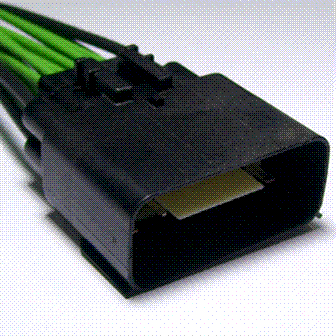

Pigtail Kit Part Number WPT-1393
Service Part Number:
7U2Z-14S411-KB
Gauge:
14 18
Pin material:
Tin & Silver
Cavities:
16
Vehicle Uses:
- Connector - Inline
- For Mating Connector Refer To WPT-1142

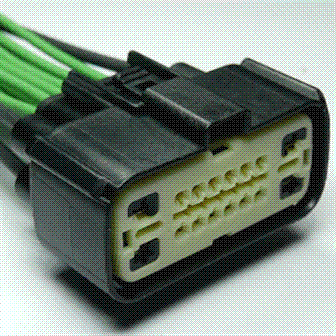

Pigtail Kit Part Number WPT-1541
Service Part Number:
JU2Z-14S411-KA
Gauge:
14 16
Pin material:
Tin & Silver
Cavities:
16
Vehicle Uses:
- Connector - Inline
- In-Line - Auxiliary Engine Connector
- Module - Glow Plug
