Connector End View (C139) - INLINE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C139 | INLINE | BK | 12A58115K867 | See Below | ||||

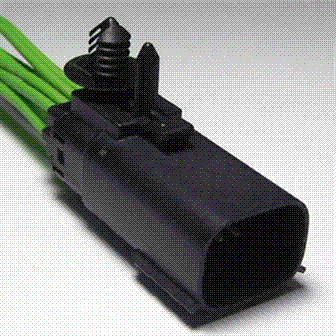

MALE
Harness
12A581

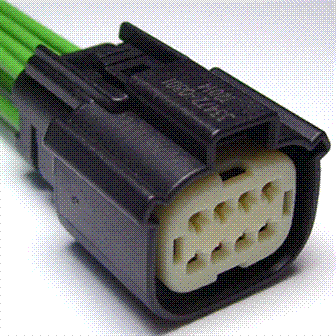

FEMALE
Harness
15K867

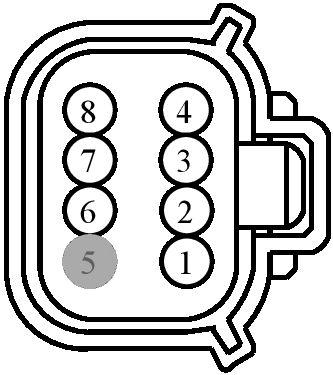

| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CBB23 (BN-YE) | 20 | 12A581 | |
| 1 | CBB23 (BN-YE) | 22 | 15K867 | |
| 2 | VMP24 (WH) | 22 | ||
| 3 | VMP26 (YE-BU) | 22 | ||
| 4 | VMP25 (BN-YE) | 22 | ||
| 5 | * | * | ||
| 6 | CRH04 (VT-GN) | 16 | ||
| 7 | DMP25 (BK) | 20 | ||
| 8 | GD120 (BK-GN) | 14 |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1407
Service Part Number:
FU2Z-14S411-DA
Gauge:
16
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Mirror - Sideview
Pigtail Kit Part Number WPT-1415
Service Part Number:
FU2Z-14S411-DB
Gauge:
16
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Mirror - Sideview
Pigtail Kit Part Number WPT-1524
Service Part Number:
CU2Z-14S411-ALB
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Actuator - Door Lock - Decklid/Liftgate
- Actuator - Door Lock - LH - Sliding Door
- Actuator - Door Lock - RH - Sliding Door
- Connector - Inline
- Inflator - Safety Belt
Pigtail Kit Part Number WPT-1276
Service Part Number:
CU2Z-14S411-ALA
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Connector - Inline
