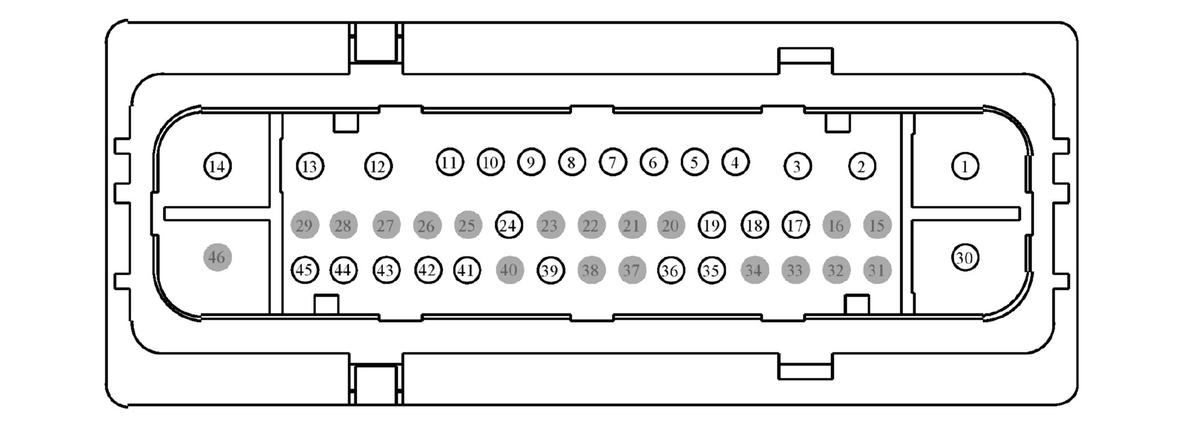

Connector End View (C135) - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C135 |
ANTI-LOCK BRAKE SYSTEM (ABS) MODULE |
12A581 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBB87 (WH-RD) |
10 |
FUSE - 87 OR CIRCUIT BREAKER |
1C1T-14474-AA |
| 2 |
CCB18 (YE-GY) |
12 |
CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT LOCK (+) |
F8VB-14474-AA |
| 3 |
CCB19 (GN-BN) |
12 |
CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-) |
F8VB-14474-AA |
| 4 |
RCA19 (VT) |
20 |
CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT |
CU5T-14474-EB |
| 5 |
VCA05 (GY-VT) |
20 |
SENSOR - WHEEL SPEED RIGHT FRONT |
CU5T-14474-EB |
| 6 |
RCA18 (BN-GN) |
20 |
CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR |
CU5T-14474-EB |
| 7 |
VCA04 (BU-OG) |
20 |
SENSOR - WHEEL SPEED LEFT REAR |
CU5T-14474-EB |
| 8 |
RCA17 (YE) |
20 |
CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT |
CU5T-14474-EB |
| 9 |
VCA03 (VT-WH) |
20 |
SENSOR - WHEEL SPEED LEFT FRONT |
CU5T-14474-EB |
| 10 |
RCA20 (BN) |
20 |
CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR |
CU5T-14474-EB |
| 11 |
VCA06 (WH-OG) |
20 |
SENSOR - WHEEL SPEED RIGHT REAR |
CU5T-14474-EB |
| 12 |
CCB17 (BU-GN) |
12 |
CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT UNLOCK (-) |
F8VB-14474-AA |
| 13 |
CCB16 (WH-VT) |
12 |
CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT LOCK (+) |
F8VB-14474-AA |
| 14 |
GD121 (BK-YE) |
10 |
GROUND - FENDER FRONT LEFT # 2ND POINT |
1C1T-14474-AA |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
CCB20 (BU-WH) |
20 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 1 |
CU5T-14474-EB |
| 18 |
CCB21 (GN-VT) |
20 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 2 |
CU5T-14474-EB |
| 19 |
CCB22 (WH-BN) |
20 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 3 |
CU5T-14474-EB |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
* |
* |
Not Used |
N/A |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
CCB23 (VT-GN) |
20 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 4 |
CU5T-14474-EB |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
* |
* |
Not Used |
N/A |
| 27 |
* |
* |
Not Used |
N/A |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
* |
* |
Not Used |
N/A |
| 30 |
SBB69 (GY-RD) |
12 |
FUSE - 69 OR CIRCUIT BREAKER |
97BG-14474-CEA |
| 31 |
* |
* |
Not Used |
N/A |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
* |
* |
Not Used |
N/A |
| 34 |
* |
* |
Not Used |
N/A |
| 35 |
CBB25 (WH-OG) |
20 |
FUSE - 25 OR CIRCUIT BREAKER |
CU5T-14474-EB |
| 36 |
VCA38 (BN-VT) |
20 |
SENSOR - BRAKE VACUUM SIGNAL 1 |
CU5T-14474-EB |
| 37 |
* |
* |
Not Used |
N/A |
| 38 |
* |
* |
Not Used |
N/A |
| 39 |
CCB24 (WH-OG) |
20 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 5 |
CU5T-14474-EB |
| 40 |
* |
* |
Not Used |
N/A |
| 41 |
CCB25 (BN) |
20 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 6 |
CU5T-14474-EB |
| 42 |
VDB25 (GN-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
DU5T-14474-TAB |
| 43 |
VDB26 (GY-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |
DU5T-14474-TAB |
| 44 |
LCA37 (YE-OG) |
20 |
CTRL MOD. - SENSOR BRAKE VACUUM + |
CU5T-14474-EB |
| 45 |
RCA37 (WH-BU) |
20 |
CTRL MOD. - SENSOR BRAKE VACUUM - |
CU5T-14474-EB |
| 46 |
* |
* |
Not Used |
N/A |
