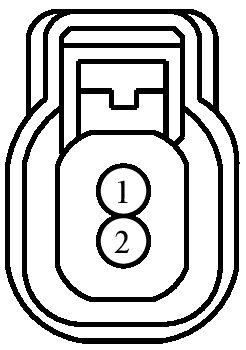

Connector End View (C124) - LOW BRAKE FLUID WARNING INDICATOR SWITCH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C124 | LOW BRAKE FLUID WARNING INDICATOR SWITCH | BK | 12A581 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7C3T-14474-RA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | 7C3T-14474-RA | ||||
| 2 | CMC19 (GY-VT) | 20 | SWITCH - LOW LEVEL BRAKE FLUID | 7C3T-14474-RA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-984
Service Part Number:
3U2Z-14S411-BXAB
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
