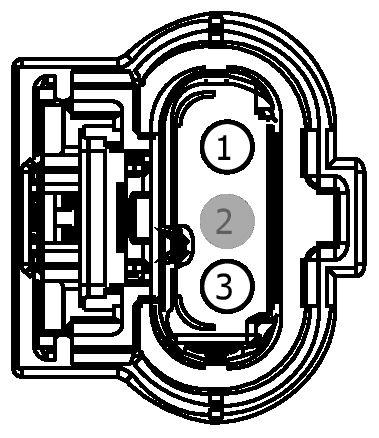

Connector End View (C114) - IGNITION COIL-ON-PLUG 4
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C114 | IGNITION COIL-ON-PLUG 4 | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE306 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) | EU5T-14474-EAB | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CBK04 (VT) | 16 | FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) | EU5T-14474-EAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1502
Service Part Number:
HU2Z-14S411-JA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Coil - Ignition
