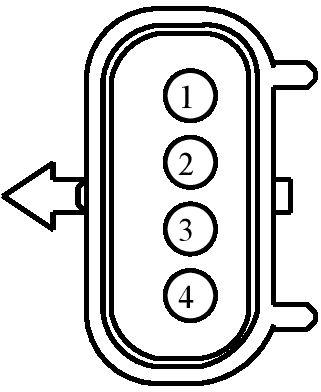

Connector End View (C109) - KNOCK SENSOR (KS)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C109	KNOCK SENSOR (KS)	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-AJA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE801 (VT-OG)	18	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+]	97BG-14421-AJA
2	RE323 (WH-BN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] -	97BG-14421-AJA
3	VE802 (BN-BU)	18	SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+]	97BG-14421-AJA
4	RE324 (BN-GN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-]	97BG-14421-AJA

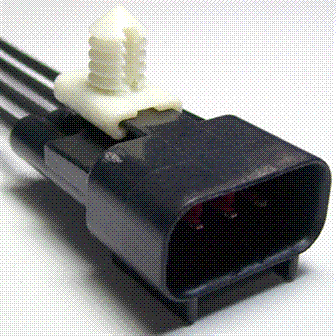

Available Pigtail Kits

Pigtail Kit Part Number WPT-1220

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-AXA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Sensor - Knock
