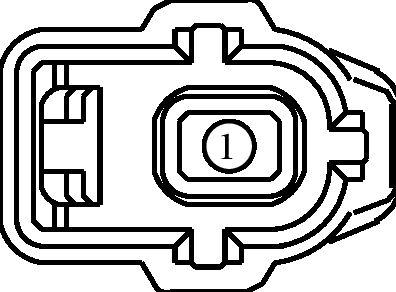

Connector End View (C103) - ENGINE OIL PRESSURE (EOP) SWITCH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C103	ENGINE OIL PRESSURE (EOP) SWITCH	NA	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
98AG-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CMC24 (GY)	18	SWITCH - OIL PRESSURE	98AG-14474-AA

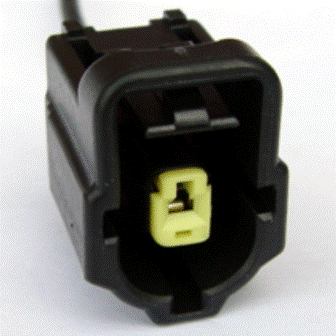

Available Pigtail Kits

Pigtail Kit Part Number WPT-439

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MHA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Sensor - Oil Pressure
Switch - Oil Sending Unit
