Muffler and Tailpipe: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not use oil or grease-based lubricants on the isolators. They may cause deterioration of the rubber.

NOTE: Replace all fasteners and the gasket.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Clean all exhaust connections before reassembly.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

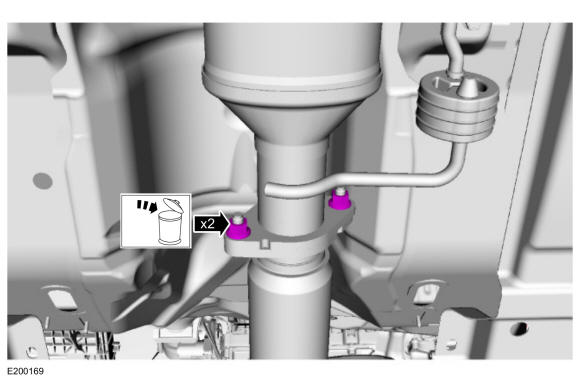

Remove and discard the muffler and tailpipe flange nuts. Discard the gasket.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

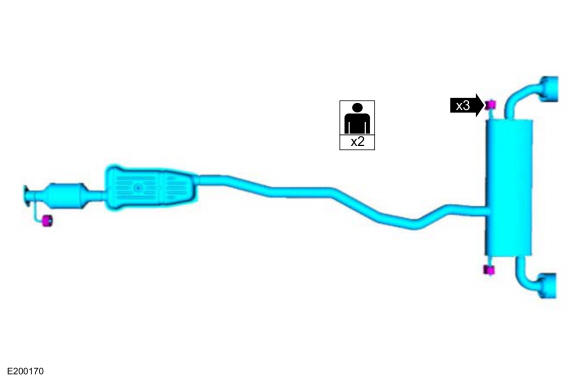

Detach the exhaust isolators and remove the muffler and tailpipe.

Courtesy of FORD MOTOR COMPANY
