Catalytic Converter RH: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.

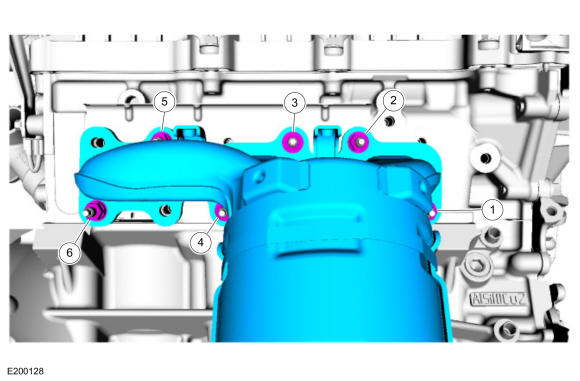

- Tighten the RH catalytic converter nuts in 2 stages in this sequence.
Torque: Stage 1: 18 lb.ft (25 Nm) Stage 2: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
- Check the exhaust system for leaks.
