Muffler and Tailpipe: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Clean all exhaust connections before reassembly.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

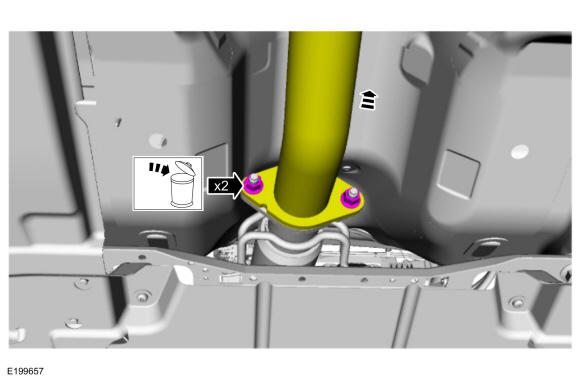

- Remove and discard the muffler and tailpipe flange nuts.
Torque: 30 lb.ft (40 Nm)

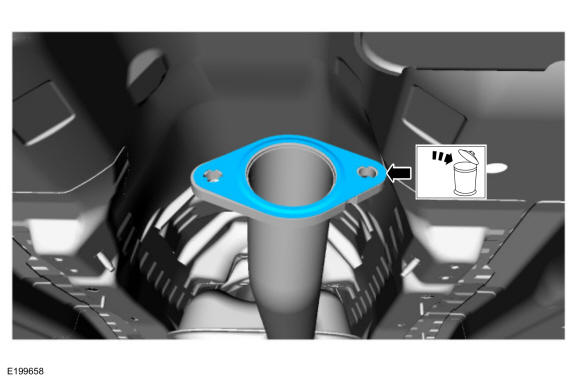

- Remove and discard the gasket.

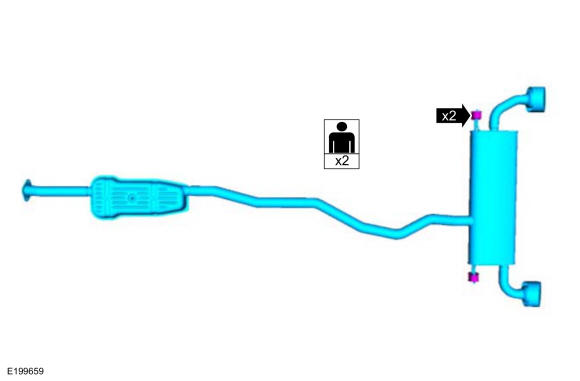

- Detach the exhaust isolators and remove the muffler and tailpipe.
