Transfer Case

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

1. Remove the front halfshaft RH. Refer to: Front Halfshaft RH - 3.5L Duratec (212kW/278PS), All-Wheel Drive (AWD) .
2. If equipped with PTU cooling system, drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
3. Remove the catalytic converter RH. Refer to: Catalytic Converter RH .

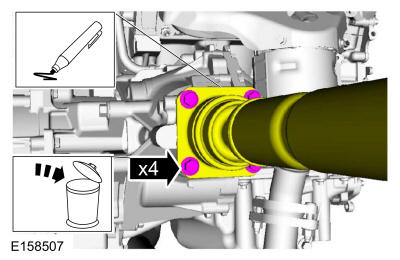

4. NOTE: Index-mark both the driveshaft flanges for installation.

   Remove the driveshaft-to-Power Transfer Unit (PTU) output flange bolts. Disconnect the driveshaft from the PTU and position it aside.

   Courtesy of FORD MOTOR COMPANY

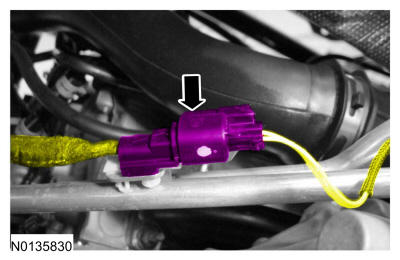

5. Disconnect the PTU temperature sensor. Remove the PTU sensor connector from the bracket and position the harness aside.

   Courtesy of FORD MOTOR COMPANY

6. If equipped with PTU cooling system, disconnect the PTU temperature sensor.

   Courtesy of FORD MOTOR COMPANY

7. If equipped with PTU cooling system, remove the PTU cooler line bolt and position the PTU cooler lines aside.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: The PTU vent hose should be replaced whenever a new PTU is installed.

   Disconnect the PTU vent hose.

   Courtesy of FORD MOTOR COMPANY

9. Drain the PTU fluid. Refer to: Transfer Case Draining and Filling .
10. Remove the PTU support bracket bolts and the PTU support bracket.

    Courtesy of FORD MOTOR COMPANY

11. Remove the PTU bolts.

    Courtesy of FORD MOTOR COMPANY

12. Remove the PTU bolts.

    Courtesy of FORD MOTOR COMPANY

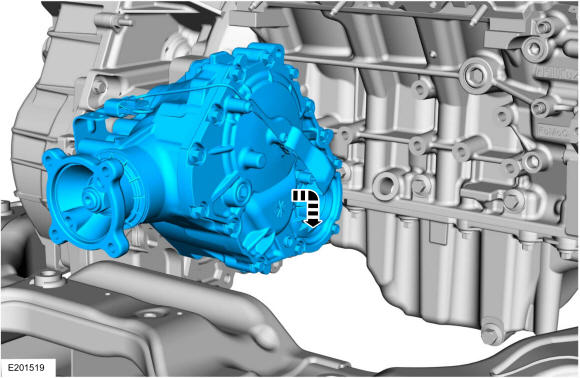

13. NOTE: This is a tight fit, use care to not damage the transmission and PTU mating surfaces.

    Remove the PTU.

    Courtesy of FORD MOTOR COMPANY

14. Remove and discard the compression seal.

Courtesy of FORD MOTOR COMPANY
