Transfer Case Cooler: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RH catalytic converter. Refer to: Catalytic Converter RH .
Drain the transfer case. Refer to: Transfer Case Draining and Filling .
Remove the transfer case temperature sensor heat shield bolts and the heat shield.

Courtesy of FORD MOTOR COMPANY
Disconnect the transfer case temperature sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Unclip the transfer case temperature sensor wiring harness from the retainer clip and position aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Clean the area around the transfer case temperature sensor before removing.

NOTE: The PTU temperature sensor can be removed using a 15mm crows foot and extension.

Remove the transfer case temperature sensor.

Courtesy of FORD MOTOR COMPANY
Using the hose clamps, pinch off the transfer case coolant hoses. Use the General Equipment: Hose Clamp(s)

Courtesy of FORD MOTOR COMPANY
NOTE: Some coolant will leak out when the PTU coolant lines are removed.

Remove the transfer case cooler line bolt and position the transfer case cooler lines aside.

Courtesy of FORD MOTOR COMPANY
Remove the transfer case cooler bolts and the transfer case cooler.

Courtesy of FORD MOTOR COMPANY

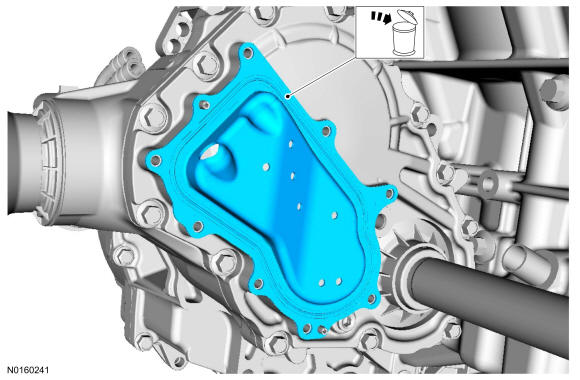

Remove and discard the transfer case cooler gasket.

Courtesy of FORD MOTOR COMPANY
