Intermediate Shaft Seal: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the RH halfshaft. Refer to: Front Halfshaft RH - 3.5L Duratec (212kW/278PS), All-Wheel Drive (AWD) .

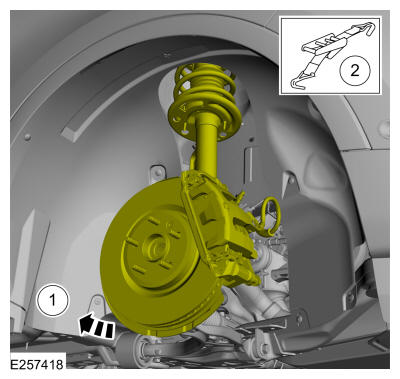

- Move aside the knuckle assembly.
-
NOTE: The following instruction will prevent the 308-125 (T87P-7120-D) from opening too far which would make removing the intermediate shaft seal deflector difficult.
Place a 16mm (5/8 in) washer on the special tool as shown. Use Special Service Tool: 308-125 Remover, Transfer Case Bearing.
-
NOTE: The intermediate shaft seal deflector may break when removed. Remote all foreign materials the PTU before continuing with the repair.

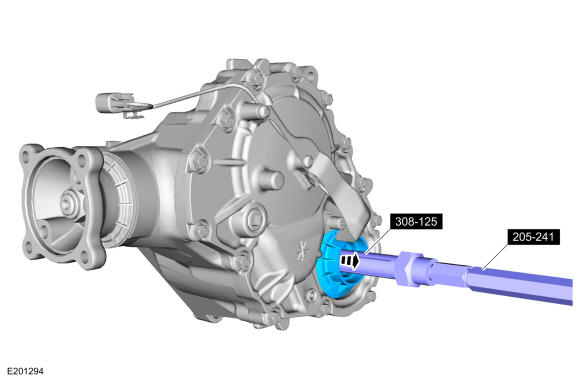

Using the special tool, remove the halfshaft deflector. Use Special Service Tool: 205-241 (T86P-3514-A) Remover, Halfshaft, 308-125 Remover, Transfer Case Bearing. Use the General Equipment: Slide Hammer

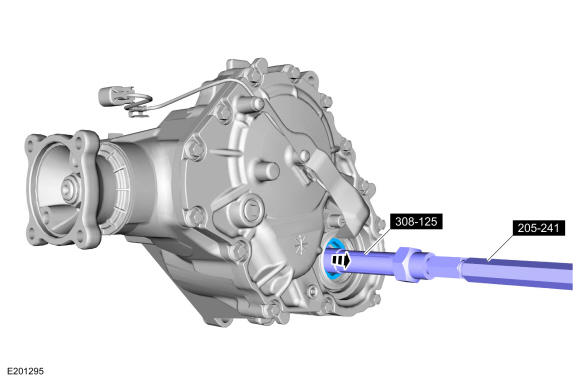

- Using the special tool, remove the halfshaft intermediate shaft seal and alignment washer. Use Special Service Tool: 205-241 (T86P-3514-A) Remover, Halfshaft, 308-125 Remover, Transfer Case Bearing. Use the General Equipment: Slide Hammer
