Transfer Case Fluid Level Check

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Name	Specification
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL	WSL-M2C192-A

Check

NOTE: A new Power Transfer Unit (PTU) must be installed any time the Power Transfer Unit (PTU) has been submerged in water.

NOTE: Fill level checks are done in-vehicle only. Let the vehicle sit 10 minutes after the road test before checking the lubricant level.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

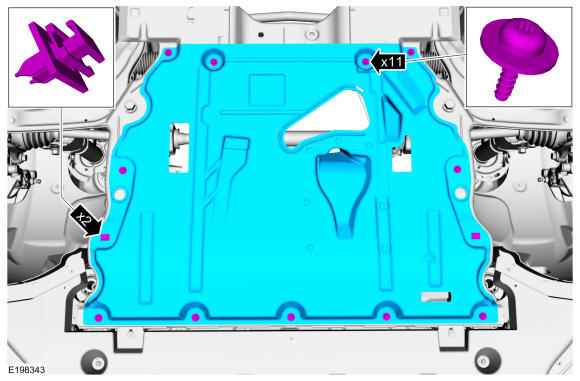

If equipped, remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

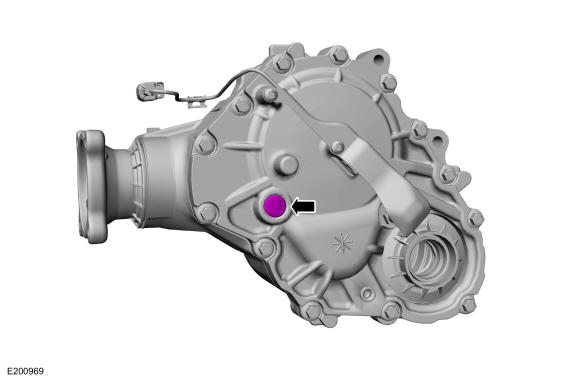

Remove the PTU fill plug.

Courtesy of FORD MOTOR COMPANY
NOTE: The fill capacity of the PTU is 18 fl oz (530 ml).

Fill the PTU with clean fluid, level with the fill plug opening.

Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

Courtesy of FORD MOTOR COMPANY
Install the PTU fill plug.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the underbody shield.

Courtesy of FORD MOTOR COMPANY
