Transfer Case Vent: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RH catalytic converter. Refer to: Catalytic Converter RH .
NOTE: Replace the PTU vent as necessary.

NOTE: The PTU vent retainer can be reached from the top of the engine compartment.

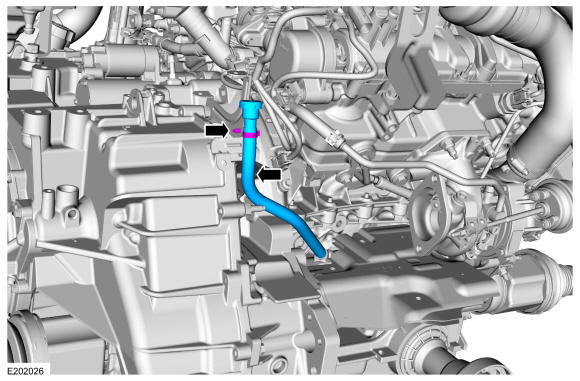

Disconnect the PTU vent hose retainer and remove the PTU vent hose.
