Transfer Case Vent: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

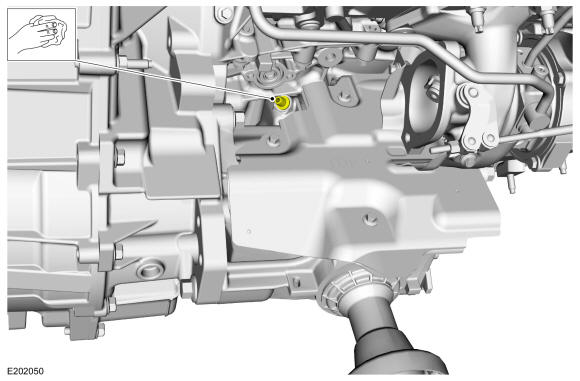

  1. Clean the PTU vent fitting.
    GFD281867Courtesy of FORD MOTOR COMPANY
  2. Connect the PTU vent hose.
    GFD281866Courtesy of FORD MOTOR COMPANY
  3. Install the RH catalytic converter. Refer to: Catalytic Converter RH .
