Transfer Case Rear Seal: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The pinion seal can be replaced in the vehicle. The PTU is shown removed from the vehicle for clarity only.
  1. Remove the sway bar bushings. Position the swaybar away for clearance. Refer to: Front Stabilizer Bar Bushing .

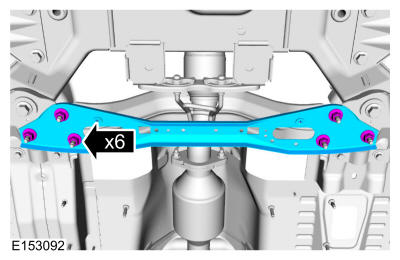

  2. Remove the retainers and the front crossmember brace.
    GFD281868Courtesy of FORD MOTOR COMPANY
  3. Remove the driveshaft. Refer to: Rear Driveshaft .
  4. Using the special tool, remove and discard the pinion flange nut. Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
    GFD281869Courtesy of FORD MOTOR COMPANY

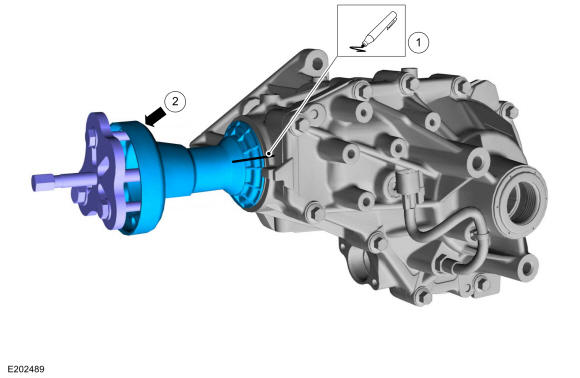

    1. Mark the pinion flange and the transfer case for reassembly.
    2. Using the puller, remove the pinion flange. Use the General Equipment: Puller
    GFD281870Courtesy of FORD MOTOR COMPANY

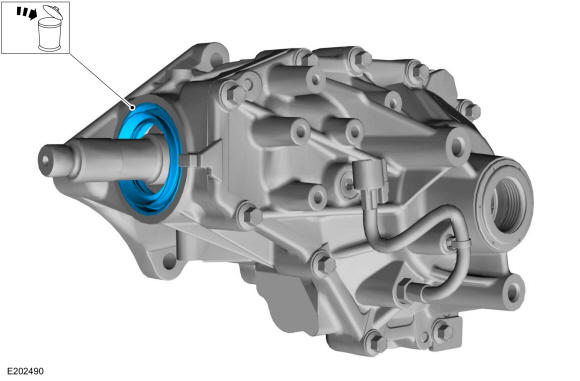

  6. Remove and discard the transfer case rear seal.
GFD281871Courtesy of FORD MOTOR COMPANY
