Transfer Case Rear Seal: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

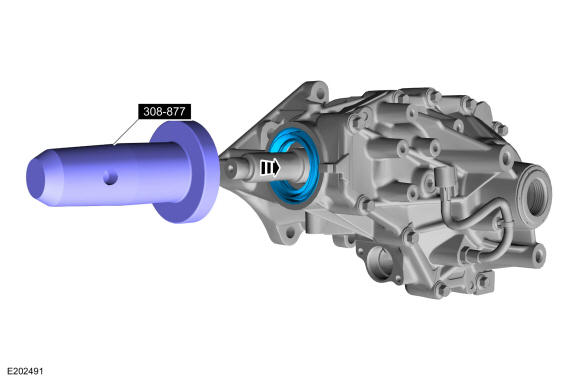

- Using the special tool, install a new rear seal. Use Special Service Tool: 308-877 Installer, Pinion Output Seal.

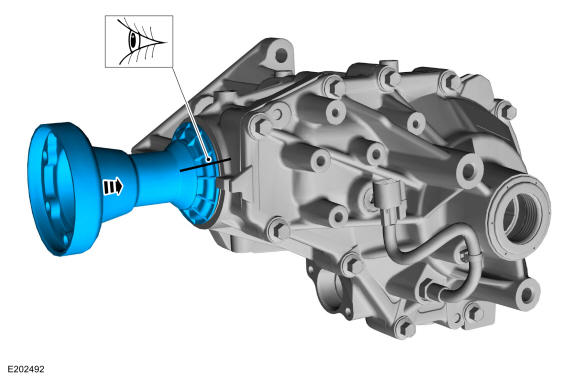

- Align the marks, and install the pinion flange.
- Using the special tool, install a new pinion flange nut. Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
Torque: 173 lb.ft (235 Nm)
- Install the driveshaft. Refer to: Rear Driveshaft .
- Install the front crossmember brace and the retainers.
Torque: 24 lb.ft (33 Nm)
- Install the sway bar bushings. Refer to: Front Stabilizer Bar Bushing .
- Check the PTU fluid level. Refer to: Transfer Case Fluid Level Check .
