Transfer Case Cooler: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

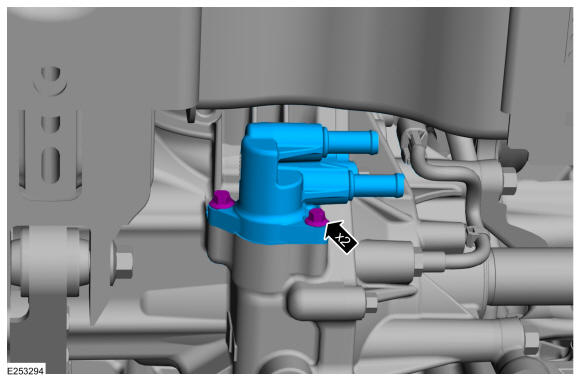

- Install the PTU cooler and the PTU cooler bolts.
Torque: 18 lb.ft (25 Nm)

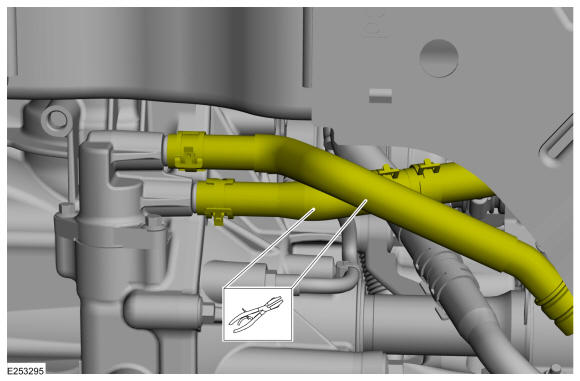

- Position the PTU cooler lines and install the PTU cooler line clamps.

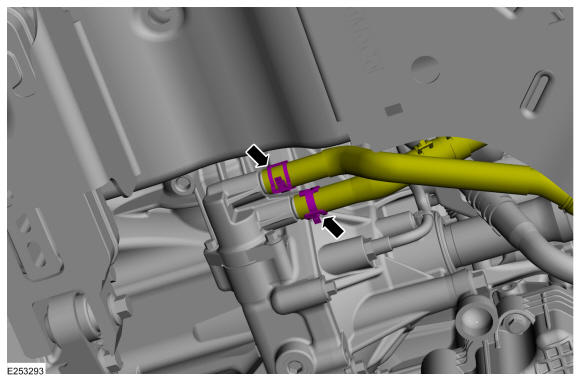

- Remove the hose clamps. Use the General Equipment: Hose Clamp(s)
- Fill the PTU. Refer to: Transfer Case Draining and Filling .
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
