Intermediate Shaft Seal: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RH halfshaft. Refer to: Front Halfshaft RH - 2.7L EcoBoost (238kW/324PS), All-Wheel Drive (AWD) .
Remove the PTU support bracket bolts and the PTU support bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: This step can be performed through the passenger side wheel opening.

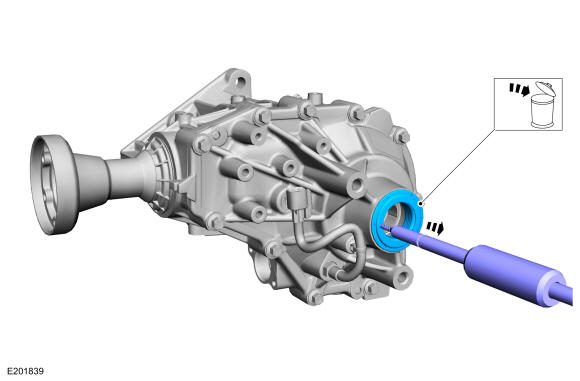

Using the puller, remove and discard the intermediate shaft seal. Use the General Equipment: Slide Hammer Dent Puller

Courtesy of FORD MOTOR COMPANY

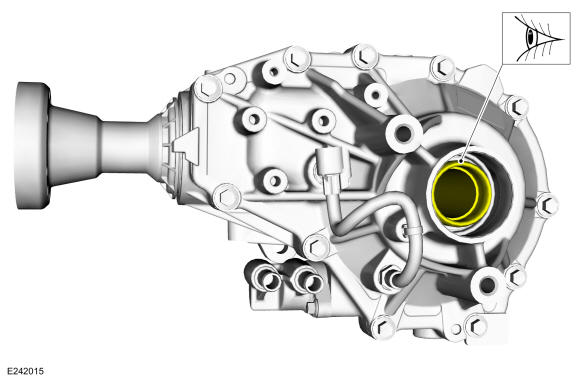

Inspect the intermediate shaft bushing. Replace if necessary. Refer to: Intermediate Shaft Bushing .

Courtesy of FORD MOTOR COMPANY
