Intermediate Shaft Bushing: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the intermediate shaft seal. Refer to: Intermediate Shaft Seal .

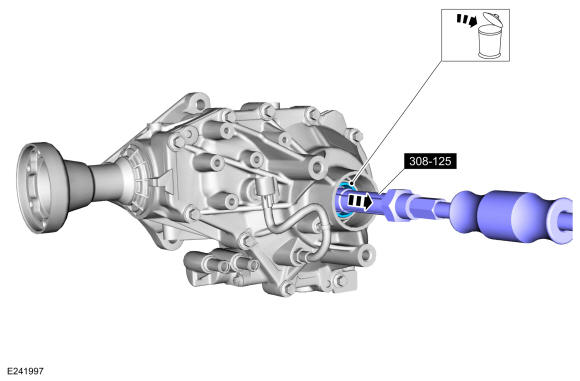

- Using the special tool and a slide hammer, remove and discard the intermediate shaft bushing. Use Special Service Tool: 308-125 Remover, Transfer Case Bearing. Use the General Equipment: Slide Hammer
