Transfer Case Draining and Filling: Filling
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

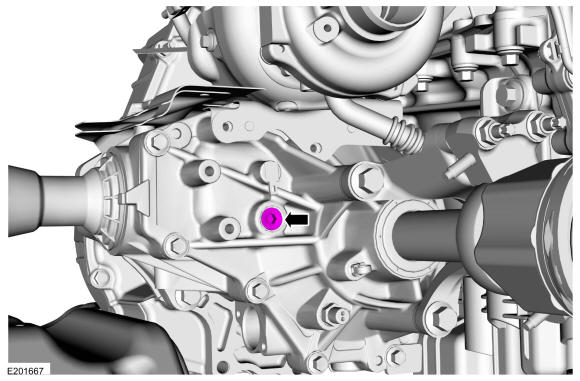

- Remove the PTU fill plug.
-
NOTE: The fill capacity of the PTU is 23 fl oz (700 ml).
Fill the PTU with clean fluid, level with the fill plug opening.
Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)
- Install the PTU fill plug.
Torque: 33 lb.ft (45 Nm)

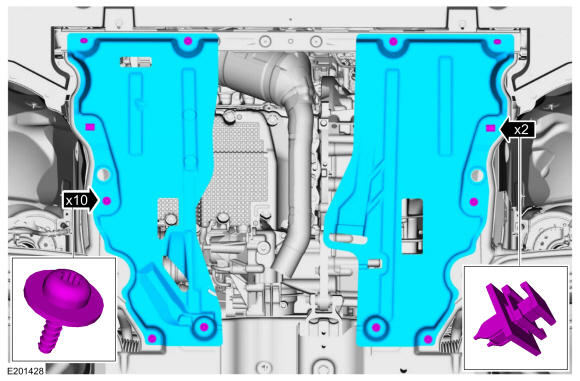

- If equipped, install the underbody shield.
